Parking Machine

1. Stop machine on a level surface and engage parking brake.

2. Reduce engine rpm to idle using switch (A).

3. Place transmission lever (B) in neutral.

4. Using raise/lower all units button (C) on hydro lever, lower units to ground.

5. Disengage row units and fan with fan/units switch (D).

6. Lower basket if raised.

7. Turn off all lights and accessories.

IMPORTANT: Before stopping engine that has been operating at working load, run engine at least two minutes at idle to cool turbocharger and hot engine parts. If engine is not properly cooled, damage can result.

8. Turn off key switch and remove key.

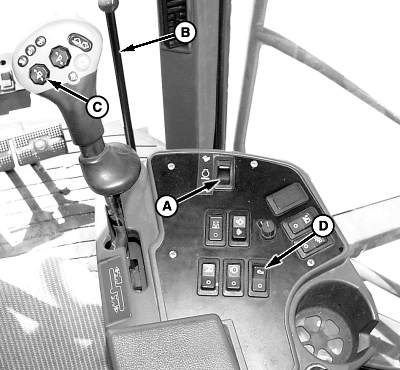

N62554


A-Switch
B-Transmission Lever
C-Raise/Lower All Units Button
D-Fan/Units Switch

OUO6043,000143E -19-04JUN01-1/1
