Access Cab Fuse Center

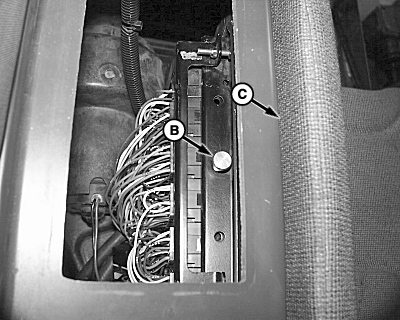

1. Lift out storage bin (A) from behind instructional seat.

2. Pull up on knob (B) and remove upper portion of instructional seat (C).


A-Storage Bin
B-Knob
C-Instructional Seat

N56520
N56521

OUO6043,0001489 -19-05JUN01-1/1
