Replacing and Adjusting Cab Head Light/Field Light Bulbs

causym CAUTION: Fully raise header and lower service locks before standing on row units to replace or adjust bulbs.

Read "SAFETY RULES WHEN REPLACING HALOGEN BULBS" in this section.

NOTE: Center two head lamps are infrared. All others are halogen lamps.

1. Remove three screws (A) evenly and remove headlamp (B).

2. Disconnect wiring (C). Clean dirt from headlamp.

3. Push in and twist retainer ring (D) counterclockwise. Bulb pulls straight out.

4. See BULB PART NUMBERS in this section for proper replacement.

IMPORTANT: Over tightening screws until they bottom out can break headlamp.

5. When installing headlamp, adjust two end screws first, then bottom screw last. Adjust screws until all three tabs are flush with panel.

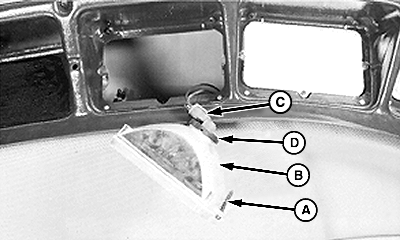

H39475


A-Screws
B-Headlamp
C-Wiring
D-Retainer Ring

OUO6043,000148E -19-05JUN01-1/1
