Replacing Gauge Light Bulbs

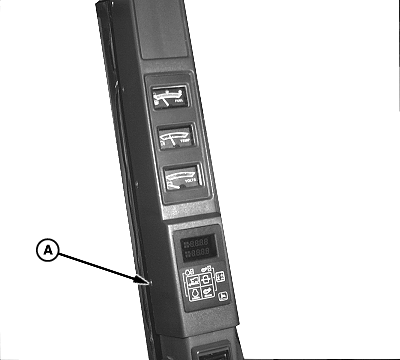

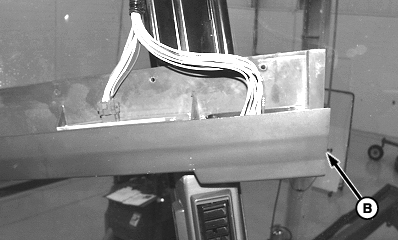

1. Remove four self-tapping screws (A) and lay cornerpost assembly (B) down as shown.


A-Self-Tapping Screws (4 used)
B-Cornerpost Assembly

N56256
N56257

OUO6043,0001491 -19-05JUN01-1/2

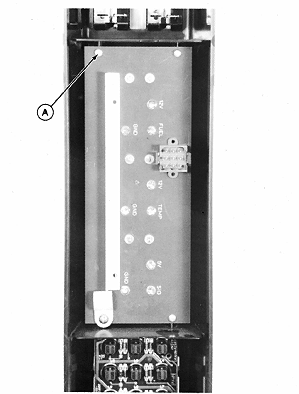

2. Remove four screws (A) and lift circuit board out of housing.

NOTE: Same procedure is used for all three gauge light bulbs.

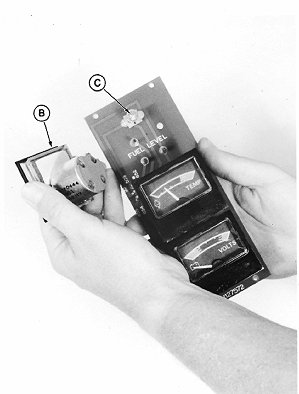

3. Pull out gauge (B).

4. Remove gauge light bulb (C) by pulling from circuit board.

5. Install new bulbs. See BULB PART NUMBERS in this section for proper replacement.


A-Screws (4 Used)
B-Gauge
C-Gauge Light Bulb

N92140AL1
N92140AN1

OUO6043,0001491 -19-05JUN01-2/2
