Replacing Dome and Console Bulbs

1. To replace either light bulb, remove lens cover by squeezing sides of cover.

2. Remove faulty dome (A) or console (B) bulb. See BULB PART NUMBERS in this section for proper replacement.

3. Install bulb and cover.

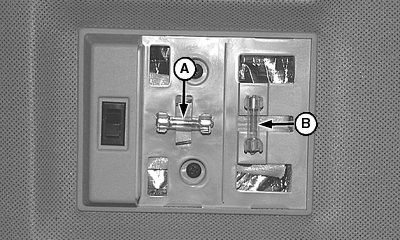

A-Dome Bulb
B-Console Bulb

H51673

OUO6043,0001492 -19-05JUN01-1/1
