Replacing Overhead Warning Display Bulbs

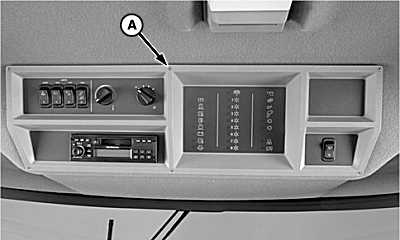

1. Remove six screws (A) and carefully lower overhead panel.

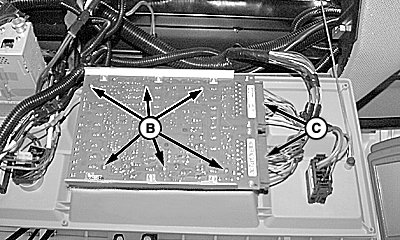

2. Remove six screws (B) and harness connectors (C).

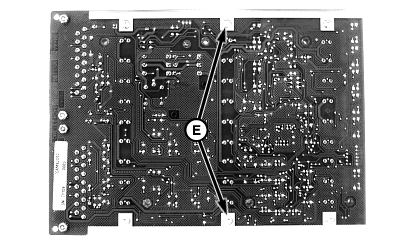

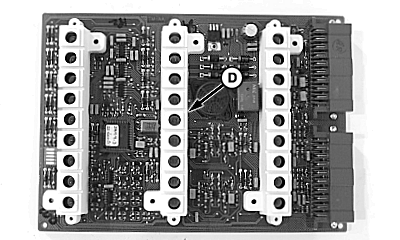

3. Remove faulty light bulb cover (D) by removing corresponding screws (E) on opposite side of circuit board.

4. Remove bulb. See BULB PART NUMBERS in this section for proper replacement.

5. Reassemble all components in reverse order of disassembly.


A-Screws (6 used)
B-Screws
C-Harness Connectors
D-Bulb Cover
E-Screws

N66081
N56464
N56466
N56465

OUO6043,0001493 -19-05JUN01-1/1
