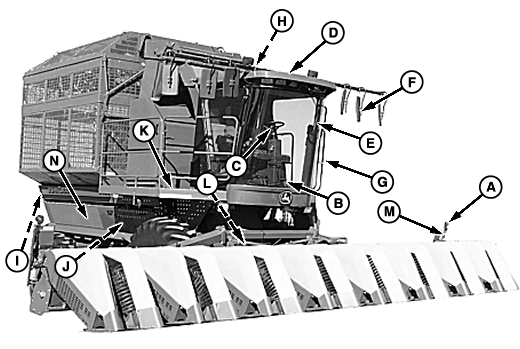

A-FRONT AND REAR HAZARD LIGHTS-Alerts oncoming and following traffic of your presence on road
B-PARK BRAKE
C-HORN-To alert others in area
D-CAB WITH SEAT BELTS AND OPERATOR PRESENCE SYSTEM-For operator comfort and safety
|
E-WINDSHIELD WIPER-For clear view of surroundings
F-LARGE REAR VIEW MIRRORS-For clear view of surroundings
G-HAND RAILS-Gives support when climbing onto machine or walking on platform
H-BASKET DUMP CYLINDER LOCK-Prevents basket unload cylinders from operating when working under basket
|
I-SMV EMBLEM-Alerts following traffic of your presence on roadway
J-STARTER SOLENOID SHIELDING-For bypass start prevention
K-DIVOTTED STEPS AND PLATFORM-Helps prevent slipping when on platform or ladder, also reduces dirt and mud build-up
|
L-HEADER DOWN STOPS-Prevent header from lowering to ground
M-REFLECTORS-Alerts traffic of your presence on roadways
N-ENGINE COMPARTMENT SIDE SHIELDS-Protection from engine fan
|
