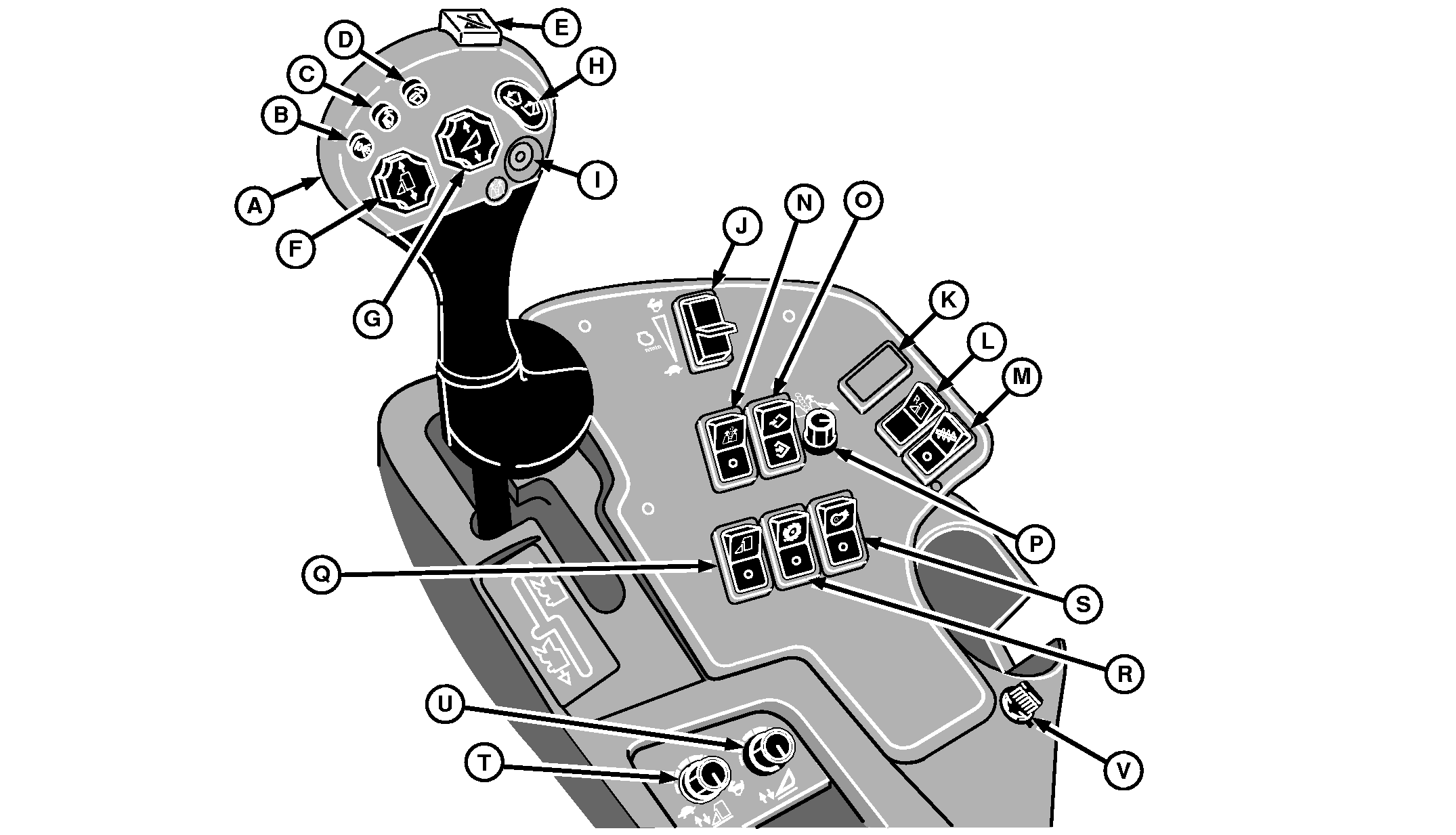

A-Multi-Function Hydro Lever
B-Saw Oiler Engage Button (Accessory)
C-Basket Raise Button
D-Basket Lower Button
E-All Units Stop Button
F-All Units Raise/Lower Button
|
G-Header Raise/Lower Button
H-Basket Vanes Button
I-ROW-TRAK™ Engage Button (If Equipped)
J-Throttle Switch
K-Spare Switch Location
L-Units Reverse Switch
M-Compactor Augers Switch
|
N-ROW-TRAK On/Off Switch (If Equipped)
O-ROW-TRAK Cal/Learn Switch (If Equipped)
P-ROW-TRAK Offset Adjust Knob (If Equipped)
Q-Row Units Start/Stop Switch
|
R-Cleaner Start/Stop Switch
S-Fan On/Off Switch
T-Header Height Control (HHC) Rate Response Knob
U-Header Height Control Knob
V-Accessory Outlet
|
