Multi-Function Hydro Lever

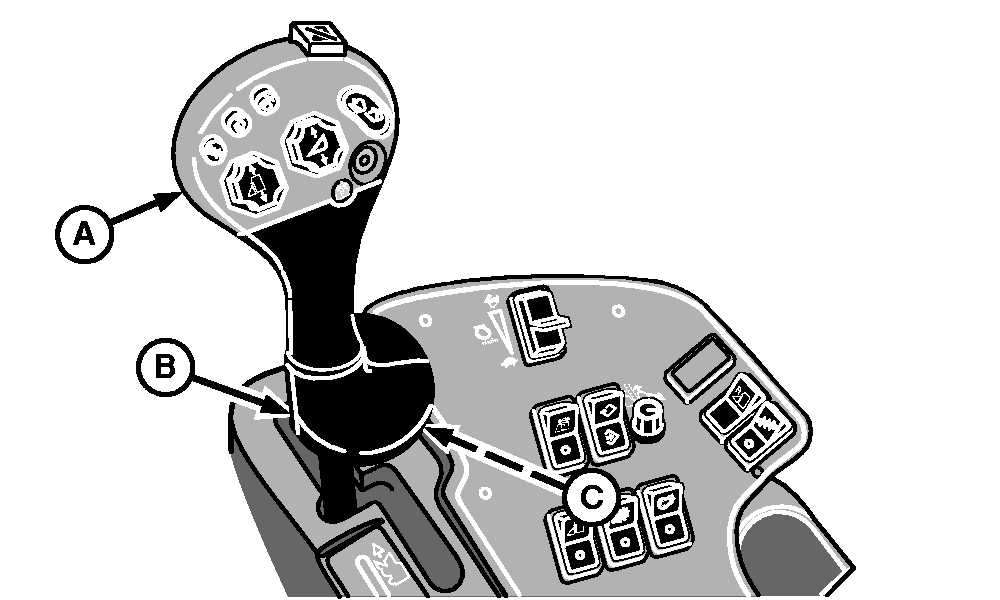

Move hydro lever (A) forward for forward travel (picking and transporting) or slightly to the right and rearward for reverse travel.

Palm rest (B) is adjustable with three detented positions. To raise or lower palm rest, pull lever (C) under palm rest, adjust palm rest to desired position, release lever.

A-Hydro Lever
B-Palm Rest
C-Lever

OUO6043,0001556 -19-26NOV02-1/1
