Basket Unload Buttons

CAUTION: Serious injury or death to you or others can occur from being crushed by basket. Always engage basket cylinder lock valve when cleaning or performing maintenance with basket raised.

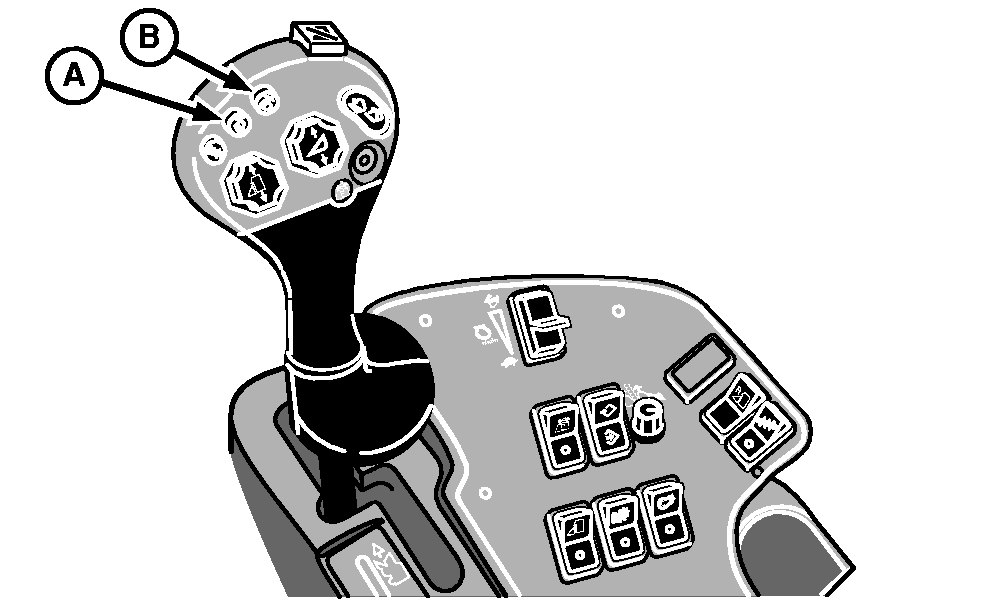

Press basket raise button (A) to raise basket for unloading or maintenance.

Press basket lower button (B) to lower basket.

A-Basket Raise Button
B-Basket Lower Button

OUO6043,0001558 -19-26NOV02-1/1
