Header Height Control (HHC) Rate Response Knob

NOTE: By slowing the responsiveness of the system, row units can run more smoothly in no-till and lake bed conditions.

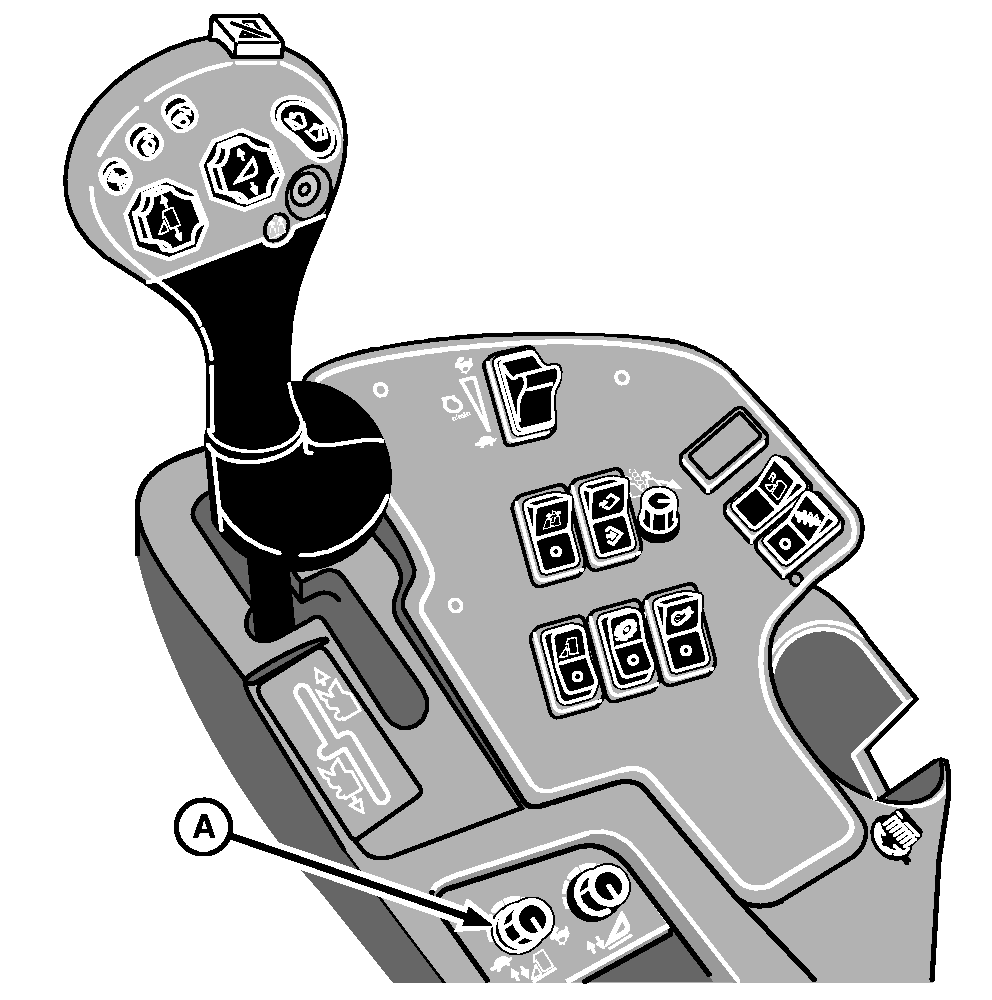

Rotate knob (A) clockwise to speed response time of row units to the terrain and counterclockwise to slow response time.

(See Header Height Control System section for details).

A-Knob
