Installing Cross Auger Extension(s)

Extension Requirements
Row Spacing 1016 mm (40 in.) LH 1016 mm (40 in.) RH 1676 mm (66 in.) RH 2032 mm (80 in.) LH 2032 mm (80 in.) RH Notes
4RWa and 5RNb
5RWa and 6RNb   X
6RWa X X
8RNb X   X     Requires truss on right-hand side
8RWa       X X Requires truss on right and left-hand sides
aWide row spacing (36, 38 and 40 in.)
bNarrow row spacing (30 and 32 in.)



OUO6043,0001584 -19-12DEC02-1/5

1. Remove existing components and hardware from auger extension.

NOTE: Check extension for sagging or unlevel condition by running a string across the front of the extensions. Add shim(s) (E), as necessary, at locations shown to angle extension slightly forward and upward.

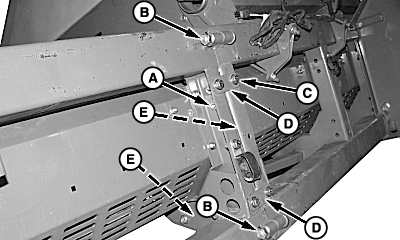

2. Attach left-hand auger extension to main frame using seven M12 x 35 flange head cap screws (A) and nuts and two M16 x 100 flange head cap screw (B) and nut.

3. Attach straps (D) to frame using four M12 x 25 flange head cap screws (C) and nuts.


A-Flange Head Cap Screws, M12 x 35 (7 used)
B-Flange Head Cap Screw, M16 x 100 (2 used)
C-Flange Head Cap Screws, M12 x 25 (4 used)
D-Straps

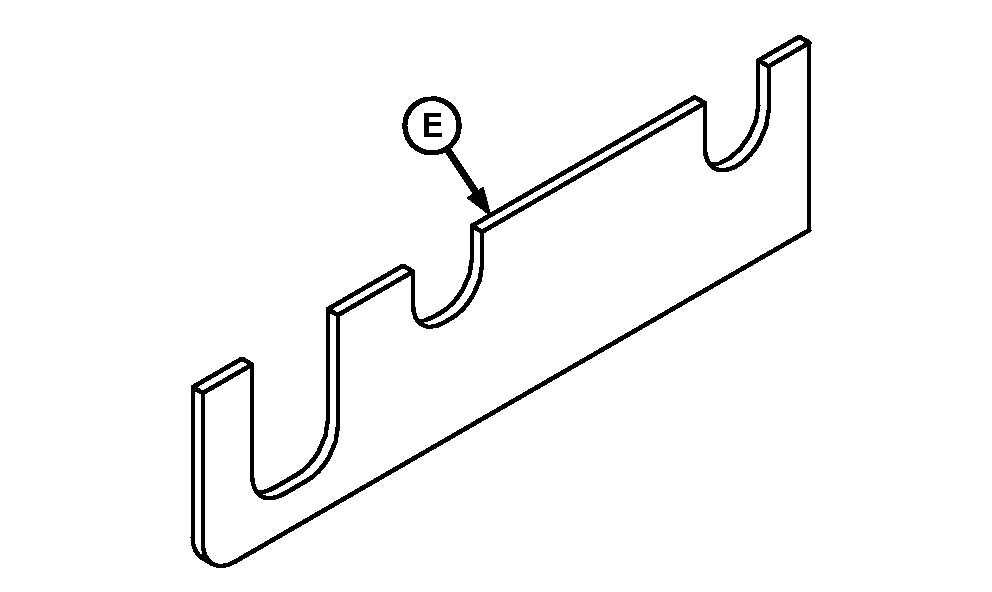

E-Shim(s)

N62067
N65143

OUO6043,0001584 -19-12DEC02-2/5

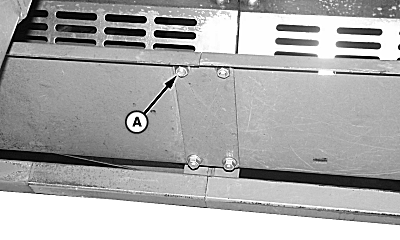

4. Attach support plate to front side of auger extension using four M10 x 20 round-head bolts (A) and nuts.


A-Round-Head Bolts, M10 x 20 (4 used)

N62066

OUO6043,0001584 -19-12DEC02-3/5

NOTE: Truss assemblies are only used on 8 row head frames. Eight row narrow configurations use truss on right-hand side only.

5. Attach truss to main frame and auger extension using four M12 x 55 flange head cap screws (A), 4 washers and nuts and seven M12 x 40 flange head cap screws (C), 10 washers and nuts. Do not tighten at this time.

6. Install 3.175 mm (0.125 in.) shims (B) and 6.35 mm (0.25 in.) shims (C). Gap must be within specification once shims have been installed.

Specification

Outer Truss-to-Main Frame -Maximum Gap 1.5 mm (0.060 in.)

7. Tighten flange head cap screws (A and C) using the following sequence.

a. Outer end of truss.

b. Center of truss.

c. Inner end of truss with shims.

8. Repeat Steps 1-5 for right-hand side of machine with 8 row head.

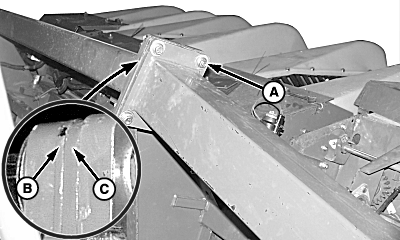

A-Flange Head Cap Screws, M12 x 55 (4 used)

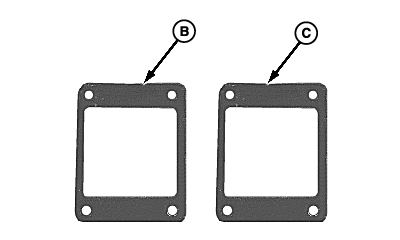

B-Shim, 3.175 mm (0.125 in.)
C-Shim, 6.35 mm (0.25 in.)

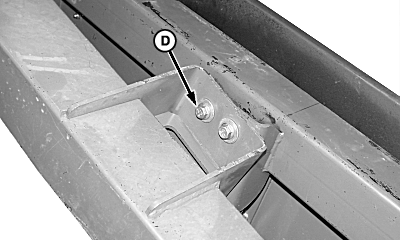

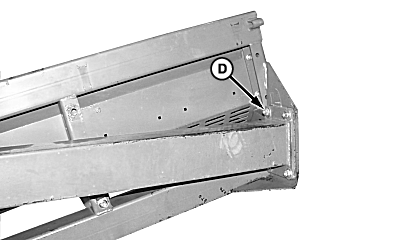

D-Flange Head Cap Screws, M12 x 40 (7 used)

N62069

Truss (Inner End)

N62594
N62068

Truss (Center)

N62070

Truss (Outer End)

OUO6043,0001584 -19-12DEC02-4/5

NOTE: For 4RW and 5RN configurations, with a single piece auger, center bearing hanger bracket is not required.

Auger flighting Orientation:

  • 8RW configurations where augers have double-flighting, orientate flighting so paddles are all approximately 90° from one another.

  • Single flighting augers should have paddles orienated 180° from one another.

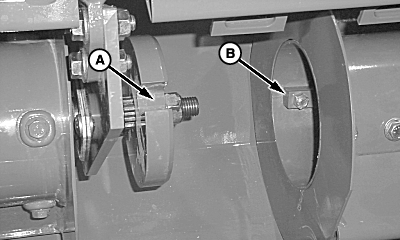

9. Align lugs in end of right-hand auger (A) with drive disk notches (B).

N62083


A-Block
B-Notches
