Fuel Gauge

Fuel gauge (A) displays approximate fuel level in tank.

Stop to refuel before fuel gauge needle reaches the empty mark. Never allow a diesel engine to run out of fuel. (See Fuels, Lubricants And Coolants section for diesel fuel specifications).

Fuel system will need to be bled and primed, should engine run out of fuel. (See Bleeding Fuel System in the Engine And Drive Train section).

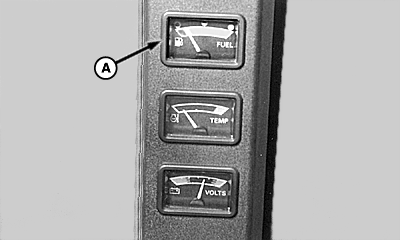

A-Fuel Gauge

N61497

OUO6043,00015A4 -19-17DEC02-1/1
