Tachometer/Hour Meter

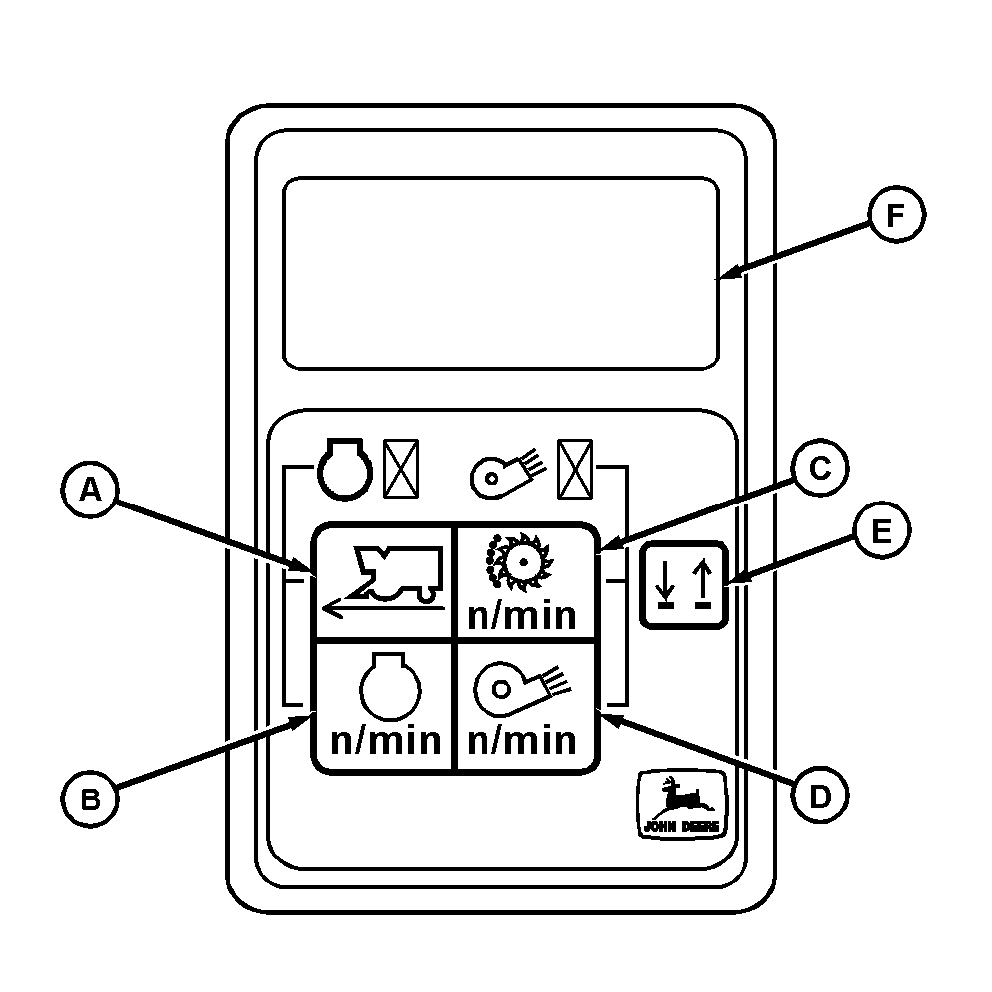

Digital tachometer consists of four "touch" switches (A, B, C and D) that display six different kinds of data.

This data consists of ground speed, engine rpm, cleaner saw drum speed, fan speed and operating hours for engine and fan.

Active Line Select button (E) selects between the top and bottom lines of display panel (F).

Use hour readings to help schedule regular service and lubrication.

NOTE: Digital tachometer displays message "SEU1" after each 50 hours of engine operation. This is service interval display message designed to help schedule regular lubrication and maintenance. (See Clearing 50 Hour Service Code in this section.)

A-Ground Speed Switch
B-Engine RPM Switch
C-Cleaner Saw Drum RPM Switch
D-Fan RPM Switch
E-Active Line Select
F-Display Panel
A/B-Engine Hours
C/D-Fan Hours

OUO6043,00015A8 -19-17DEC02-1/1
