Set Cleaner Saw Alarm

causym CAUTION: If the machine should suddenly move forward or backward, serious injury or death to you or others can result. Always be sure no one is standing on or near the machine when operating.

NOTE: Since nominal field operating cleaner saw speed is approximately 630 rpm, it is recommended that alarm be set to sound when speed of cleaner saw drops below 590 rpm (Preset Factory Setting).

1. Verify parking brake is engaged and start engine.

2. Engage cleaner saw.

3. Press and release cleaner saw button (A) on tachometer display.

4. Throttle engine up until desired cleaner saw speed registers. (Typically around 590 rpm.)

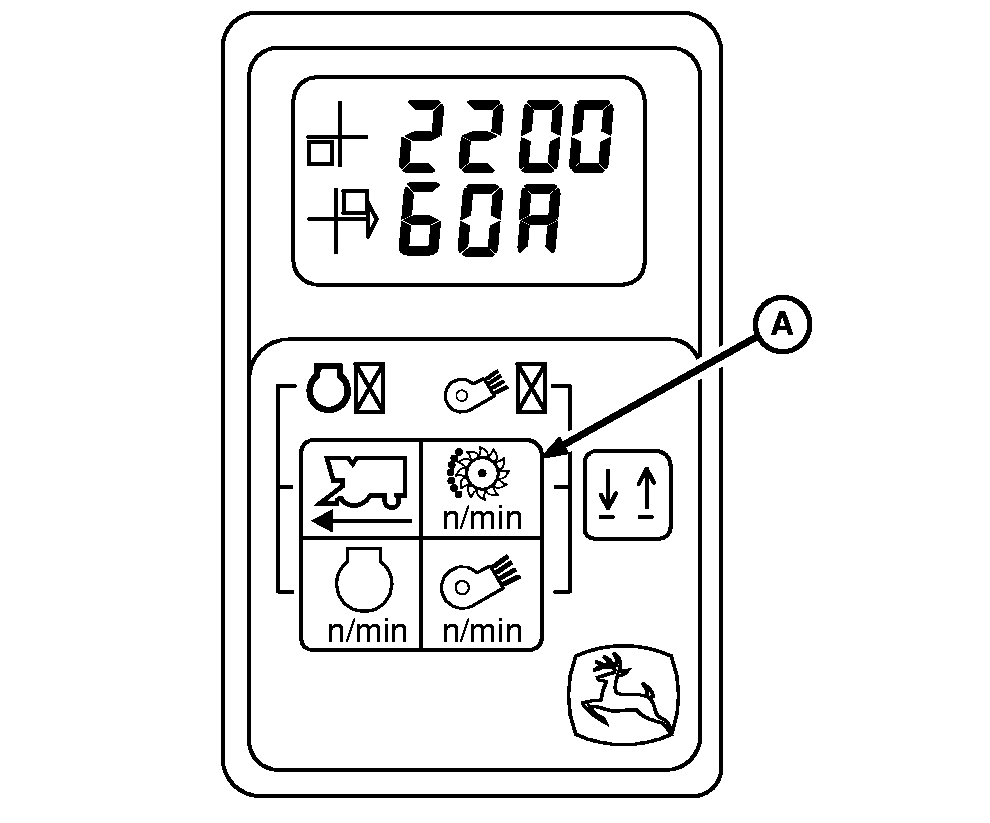

5. Press cleaner saw button on tachometer and hold until letter "A" appears at end of numerical display as illustrated.

6. Lower cleaner saw speed below set speed and increase ground speed above 0.1 mph. Alarm should sound for 3 seconds and caution light and cleaner warning light should come on.

7. Raise cleaner saw speed above set speed and both caution light and cleaner warning light should turn off.

N62627
N62628


A-Cleaner Saw Button

OUO6043,00015AB -19-18DEC02-1/1
