Checking Diagnostic Error Codes

OUO6043,00015AD -19-18DEC02-1/2

Diagnostic error codes are supplied to detect malfunctions in 7460 Cotton Stripper electrical system.

NOTE: Error codes will only display if machine has not been shut off since error occurred.

The load center is located in the cab behind instructional seat.

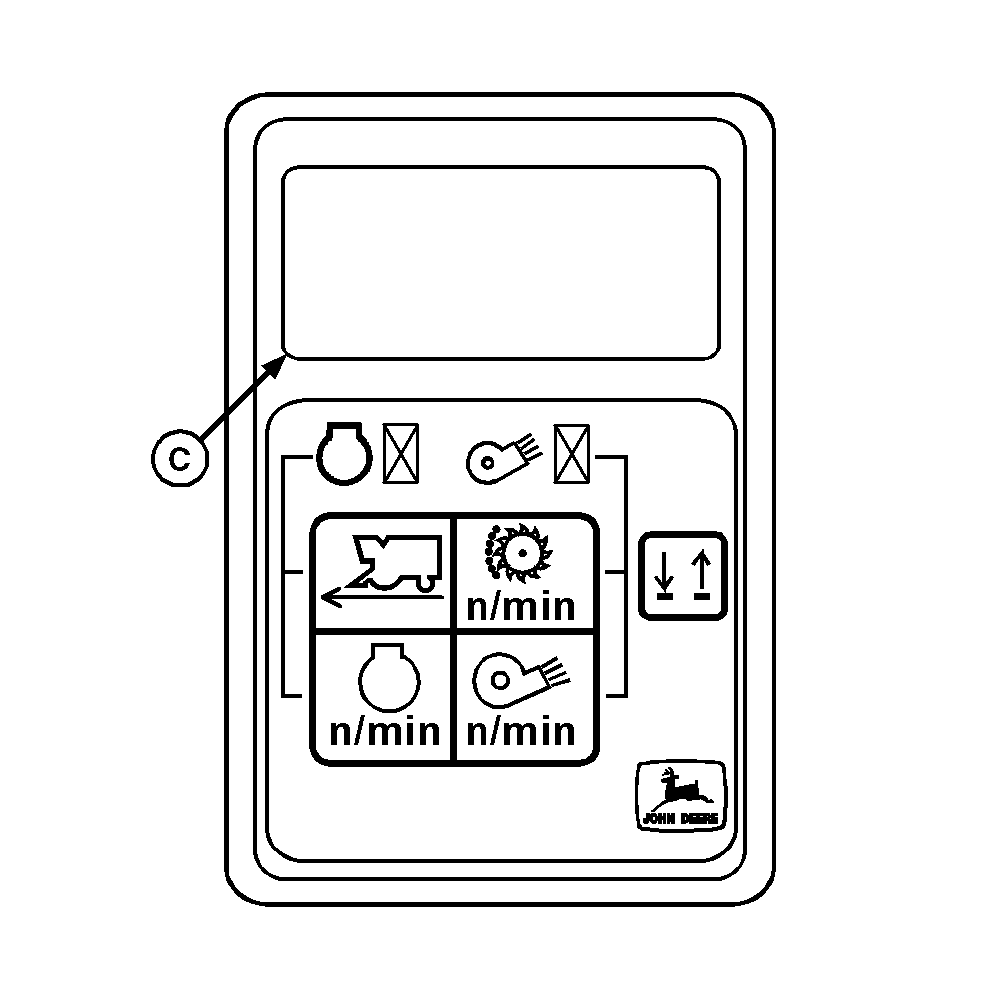

2. When error is detected, an error number will display on tachometer display (C). If more than one error is detected each number will display for 6 seconds and then next error number(s) will be displayed. When last number has been displayed, numbers will appear again, starting at beginning.

NOTE: See CCU Diagnostic Codes (**) in this section for code explanation.

3. Clear error number off tachometer by turning ignition switch off.

NOTE: If three-amp fuse is not removed from diagnostic fuse location, hard starting will occur.

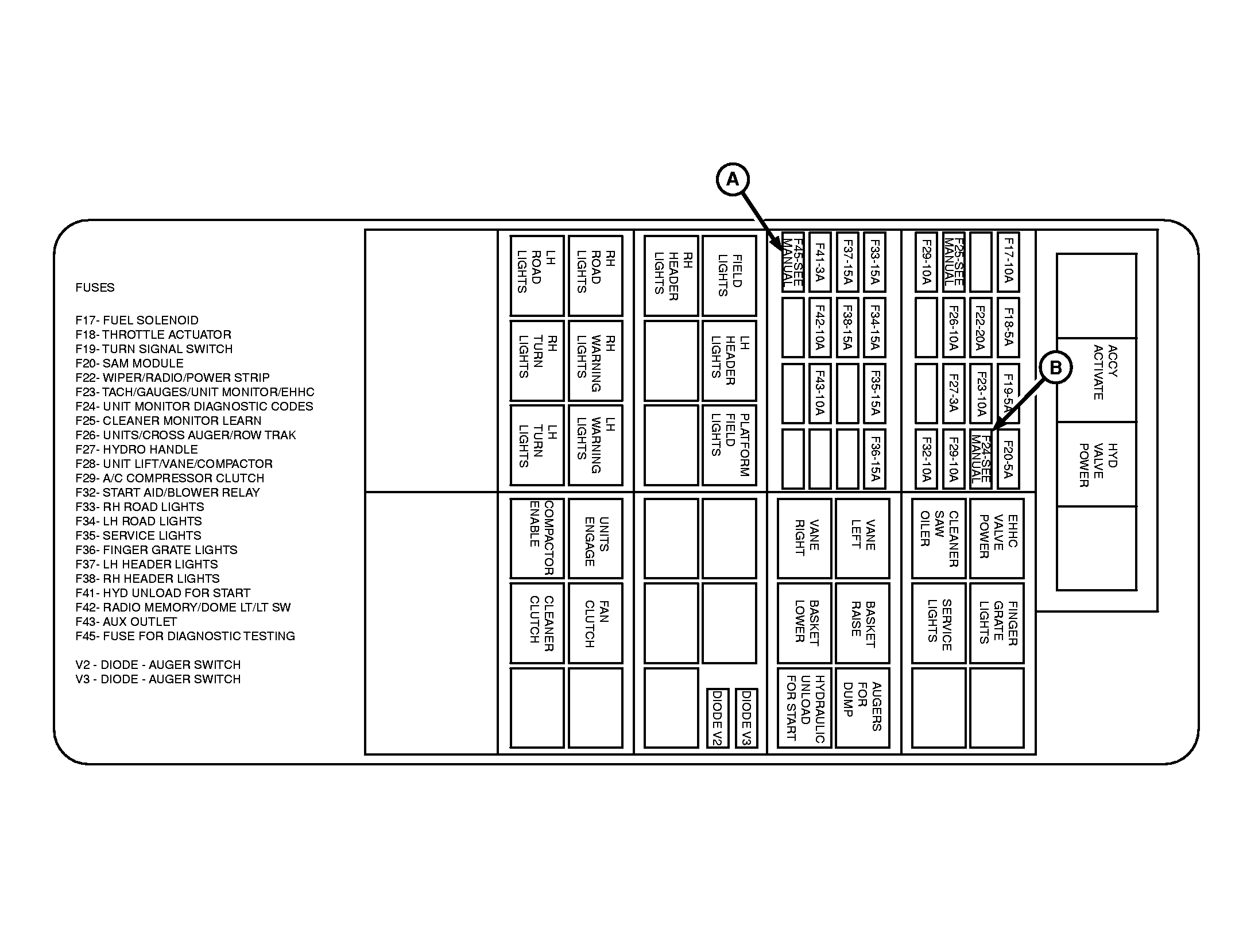

4. Remove three-amp fuse from diagnostic location and return it to location (A).
