Hydraulic Filter Restriction Indicator

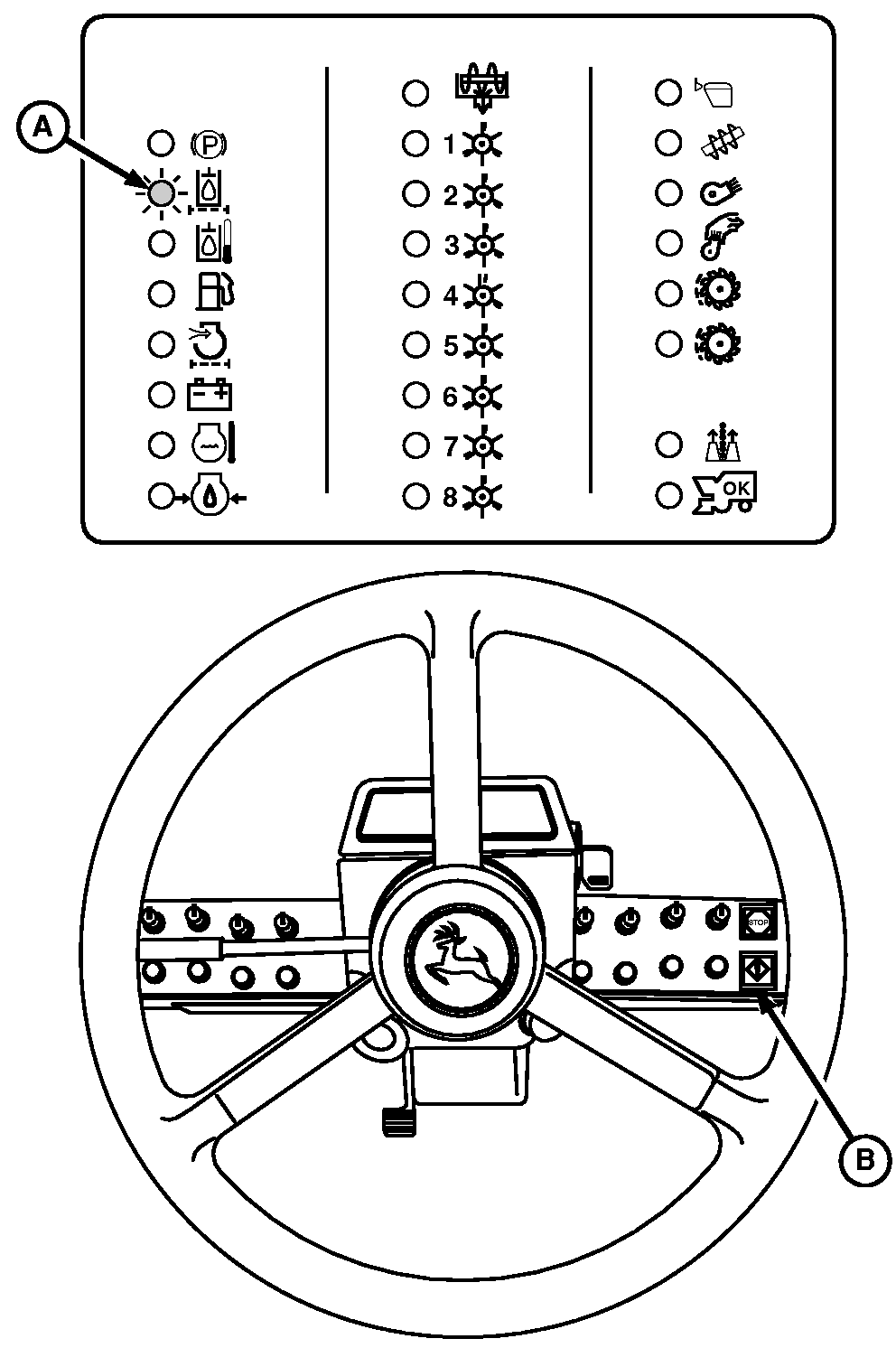

Amber indicator light (A) and CAUTION indicator (B) will come on and a three second alarm will sound if hydraulic oil filter becomes restricted.

Continued operation can cause damage to the hydraulic system. Stop machine and change filter.

(See Lubrication and Maintenance section for procedure.)


A-Amber Indicator Light
B-CAUTION Indicator

N65658

OUO6043,00015B2 -19-18DEC02-1/1
