Hydraulic Oil Temperature Indicator

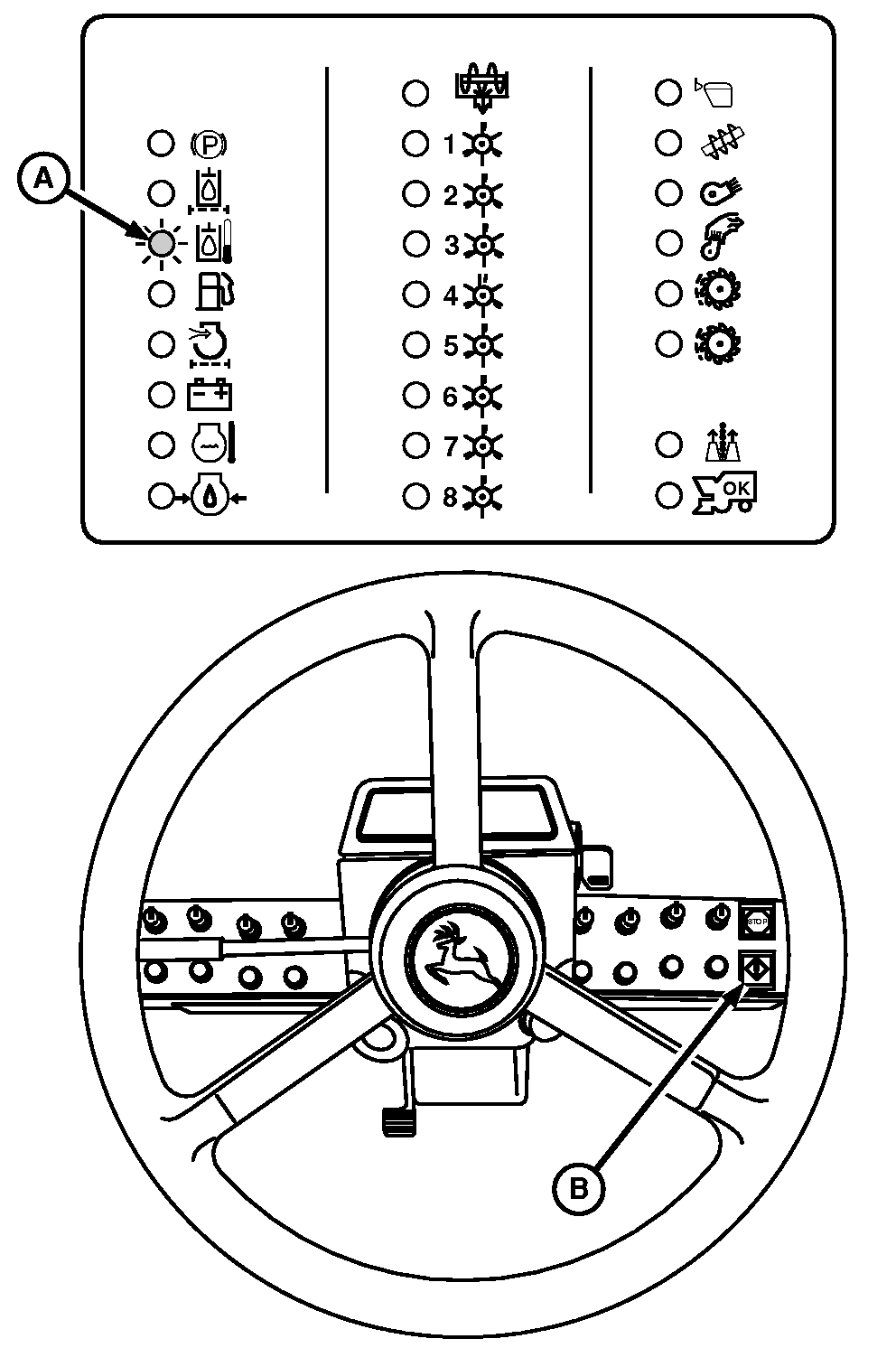

Amber indicator light (A) and CAUTION indicator (B) will come on and a three second alarm will sound when hydraulic oil temperature reaches 105°C (221°F). Immediately stop machine and reduce load on hydraulic system. Disengage header and compactor auger to allow oil to cool.

Continued operation may cause oil temperature to rise even higher, resulting in machine damage. (See Troubleshooting section.)

Check oil level. Clean accumulated debris from oil cooler. (See Lubrication and Maintenance section.)

A-Amber Indicator Light
B-CAUTION Indicator

OUO6043,00015B3 -19-18DEC02-1/1
