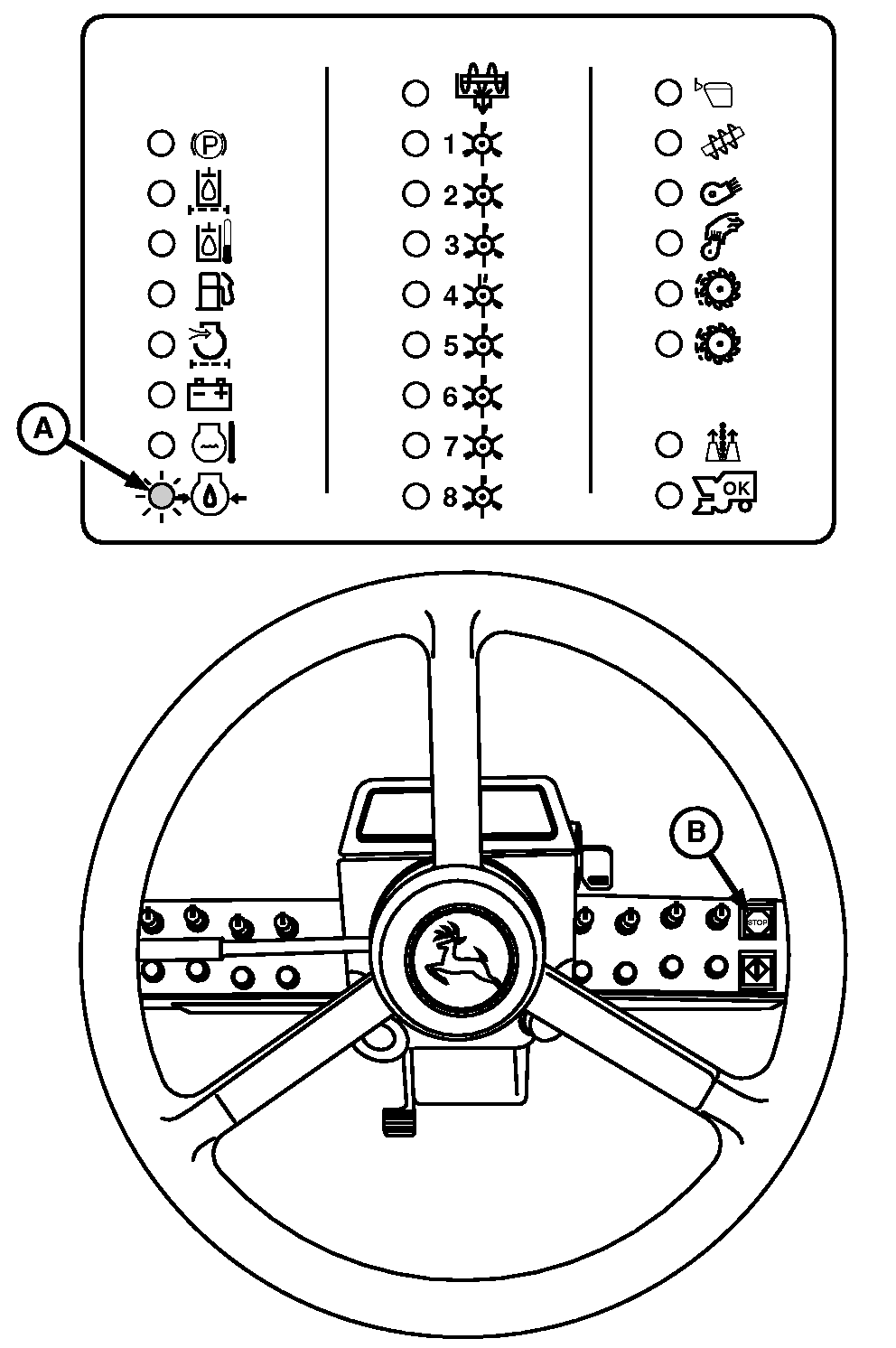

Oil Pressure IndicatorIMPORTANT: Prevent possible engine damage. If engine oil pressure indicator comes on while operating, stop engine immediately. Red indicator light (A) comes on, STOP indicator (B) flashes and pulsed warning alarm sounds when engine oil pressure is low. If indicator comes on, stop engine immediately. Determine and correct cause before restarting engine. (See Troubleshooting section.) Red indicator light (A) will come on when engine is not running if key switch is turned to ON position. NOTE: Cold oil, low oil level or extreme off-level operation may cause indicator to light.
|
|
OUO6043,00015B8 -19-19DEC02-1/1 |
