Slow Fan Speed Indicator

Amber indicator light (A) and CAUTION indicator (B) will come along with a three second alarm when fan speed drops below 3900 rpm.

Fan rpm can drop due to clutch or belt slippage, a restriction, or a decrease in engine rpm.

causym CAUTION: Do not attempt to remove an obstruction from units unless:

  • Units are disengaged.

  • Gear shift lever is in NEUTRAL.

  • Ignition is OFF.

  • Engine is stopped.

  • Key is removed.

  • Park brake is engaged.

Failure to adhere to these directives can result in injury or death to you or others.

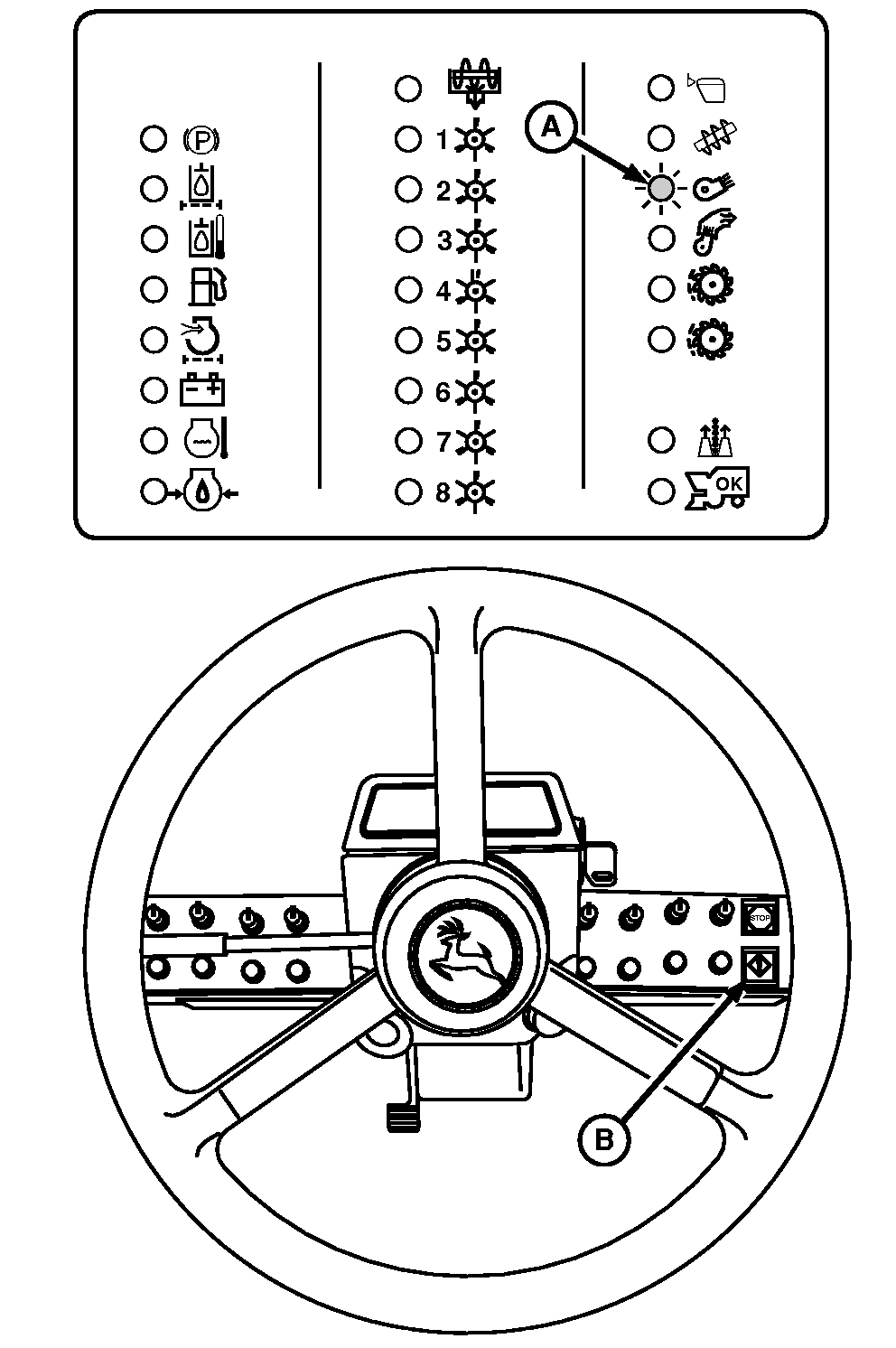

A-Amber Indicator Light
B-CAUTION Indicator

N65666

OUO6043,00015BD -19-19DEC02-1/1
