Functions Normal Indicator

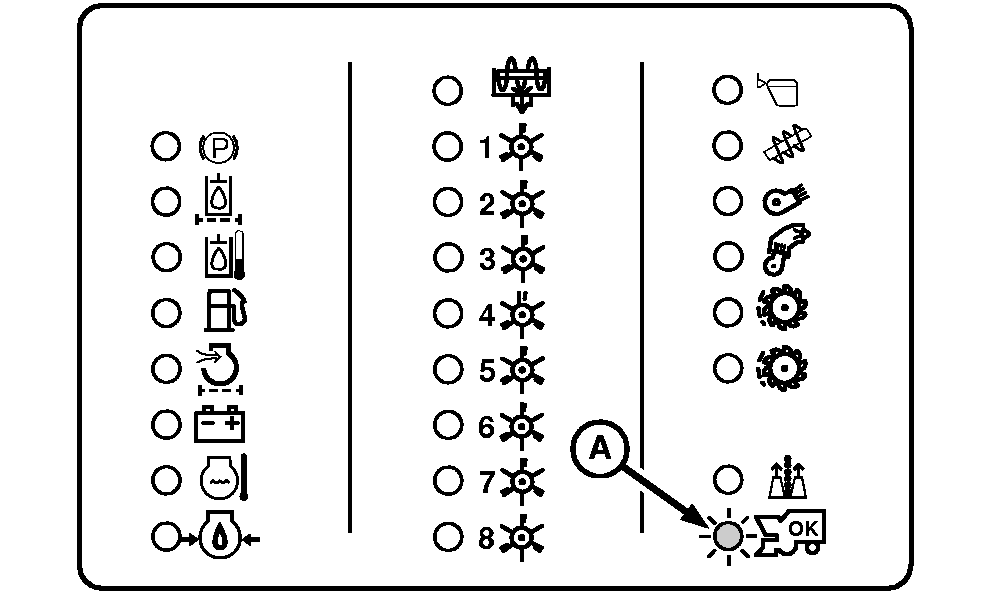

Green indicator light (A) will come on, unless one of the following conditions is occurring:
-
Header Speed Monitor Alarm
-
Row Unit Speed Monitor Alarm
-
Fan Speed Alarm
-
Hydraulic Oil Filter Monitor Alarm
-
Engine Air Filter Monitor Alarm
-
Engine Coolant Temperature Monitor Alarm
-
Engine Oil Pressure Monitor Alarm
-
Attempt to Engage Units without first Engaging Fan
-
Attempt to Engage Units without first Engaging Cleaner
-
Voltage Monitor Alarm
-
Ground Speed Detected with Park Brake On
-
Seat Bypass Mode (Cleaner ON, Units OFF, Park Brake ON, Operator is OFF Seat)
|
A-Green Indicator Light
|
