CAUTION: Some agricultural chemicals can cause serious injury or death to you or others if inhaled. Air filter in cab WILL NOT filter out harmful chemicals. When using or working with agricultural chemicals, follow manufacturer's instructions.

NOTE: Use the highest comfortable blower speed and adjust air conditioning temperature to an intermediate setting. Avoid operating with blower speed on low and the cooling temperature at maximum cool.

For optimum cooling, close heater valve on engine.

NOTE: Blower switch must be in an ON position before air conditioning will operate.

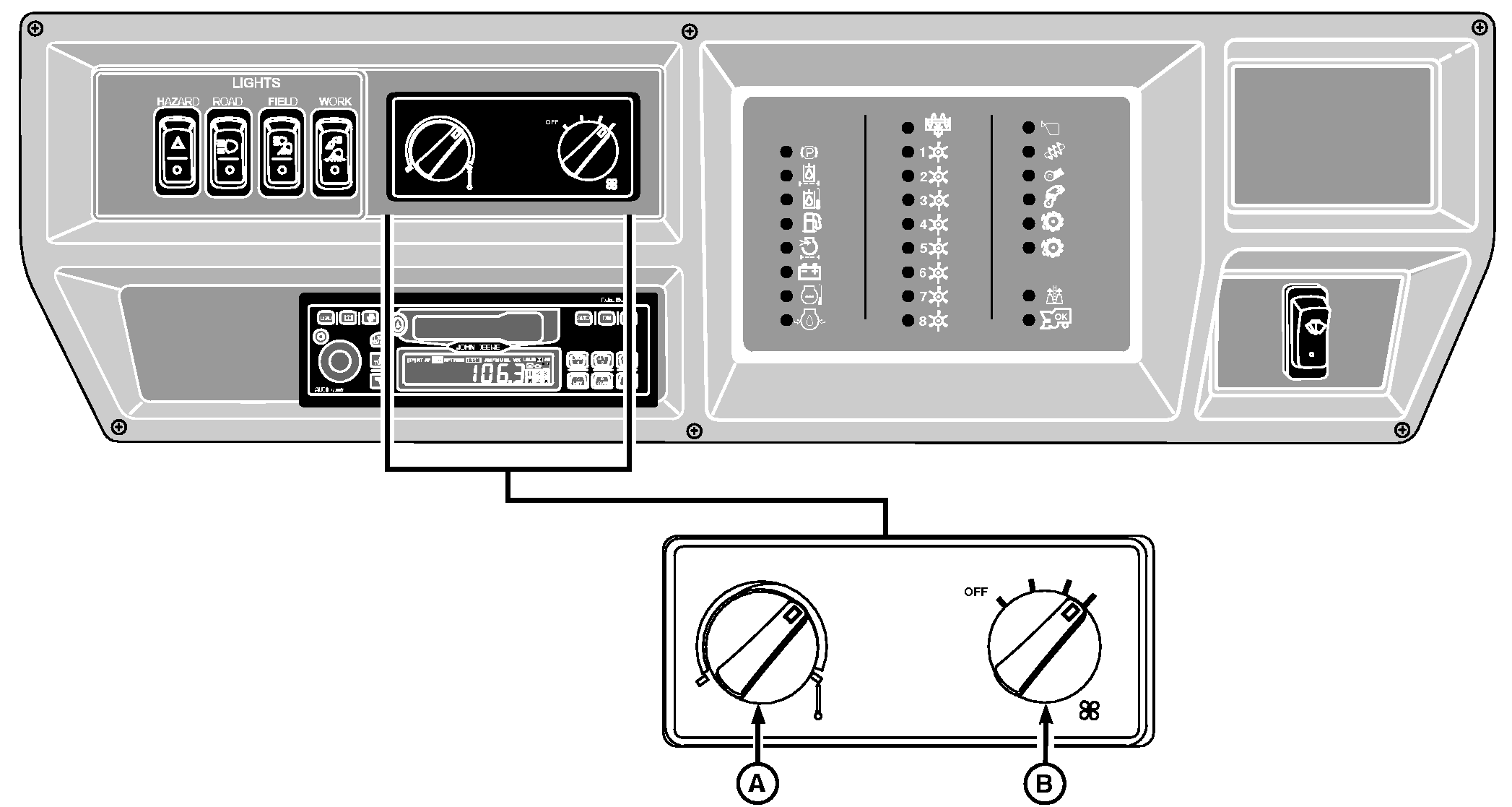

Rotate temperature adjust switch (A) to the left for air conditioning and to the right for heater.

Rotate fan speed switch (B) to the right to increase blower speed.

OUO6043,00015C3 -19-19DEC02-1/2

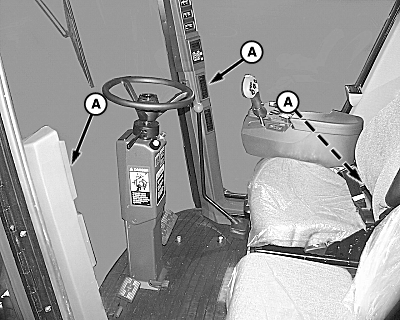

Adjust air outlet vents (A) to direct air where needed, such as for defogging windows.

A-Air Outlet Vents

OUO6043,00015C3 -19-19DEC02-2/2
