Lights And Warning Signals
 CAUTION:
When transporting the machine on a road or highway at night or during the day, use lights and devices for adequate warning to operators of other vehicles or serious injury or death can result to you or others. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.
CAUTION:
Hazard lights do not operate when field lights are operated.
-
(A) Hazard:
Amber lights on outer most row units and platform will flash
-
(B) Road:
Two center cab headlamps
Two outside cab headlamps
Red tail lamps
-
(C) Field:
Two middle cab headlamps
Rearward facing header lights
Platform-mounted, forward facing lamps (optional)
-
(D) Work: Position #1
Finger grate lights on cab roof mirror/light bar
-
(D) Work: Position #2
Cleaner light (optional)
Basket dump light (optional)
|

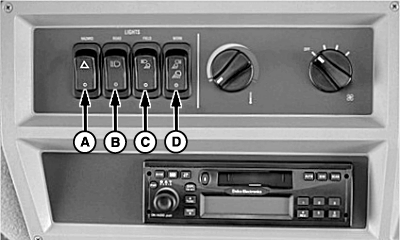

A-Hazard Lights
B-Road Lights
C-Field Lights
D-Work Lights
|
