Adjusting Steering Wheel Tilt And Height

CAUTION: Adjust steering wheel only when machine is stopped.

Column is spring loaded to the upright position. Do not step on pedal without holding steering wheel with both hands.

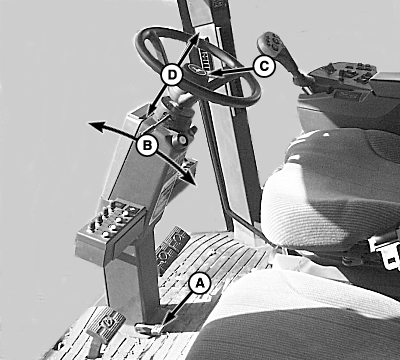

Press pedal (A) to release steering column lock. Place column in desired position (B). Release pedal to lock column in position.

Loosen hub (C). Push or pull wheel to desired position (D). Tighten hub to lock.

Only a slight tightening of hub is required to hold steering wheel in position.

A-Pedal
B-Position
C-Hub
D-Position
