Removing Rear Screen

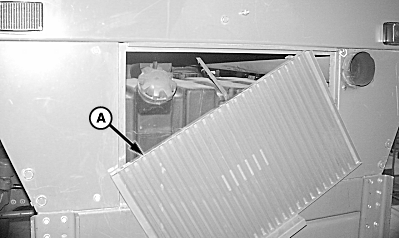

1. Grasp screen (A) and pull out. Turn screen to right, perpendicular to ground; then release. Spring will hold screen in place.

IMPORTANT: After servicing, always replace screen to protect fuel tank from debris.

2. Reverse Step 1 to replace rear screen.


A-Screen

N62717

OUO6043,00016EC -19-05MAY03-1/1
