Attaching Machine To-John Deere 7000 Series Tractors

1. Back tractor into position and attach hitch link to drawbar. Be sure hitch pin is retained with spring strap or hex nut.

2. Plug wing-fold hoses (A) (if equipped) into SCV II couplers.

3. Plug depth control hoses (B) into SCV I couplers.

IMPORTANT: If using open SCV for by-pass line, place SCV control in float position when operating. Float function must be reset every time the tractor engine is shutoff and restarted.

4. Plug hydraulic gang control hoses (if equipped) into SCV III couplers.

5. NARROW FLEX-FOLD ™ MACHINES: Install pressure by-pass line into open SCV coupler (C) or return port (D) (if equipped).

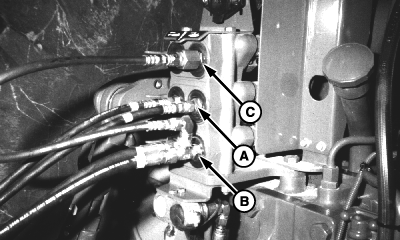

N59184

John Deere 7000 Series Tractors W/O Hydraulic Gang Control

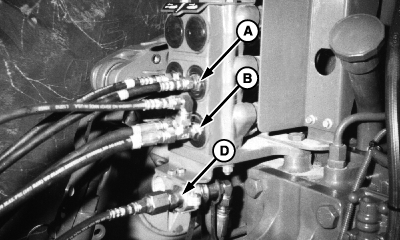

N59185

John Deere 7000 Series Tractors With Return Port


A-Wing-Fold Hoses
B-Depth Control Hoses
C-SCV Coupler
D-Return Port

FLEX-FOLD is a trademark of Deere & Company.

AG,OUO1011,2664 -19-28MAR00-1/2

IMPORTANT: Be sure jack handle is located on top when transporting machine, or damage to jack can occur.

6. Move jack (A) to transport position.


A-Jack

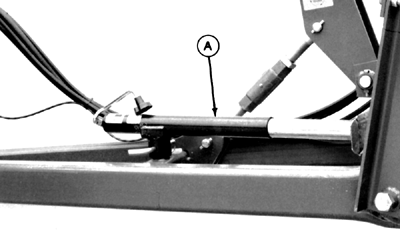

N42158CJ

AG,OUO1011,2664 -19-28MAR00-2/2
