Adjusting Stabilizer Wheel Down-Pressure-Rigid-Fold

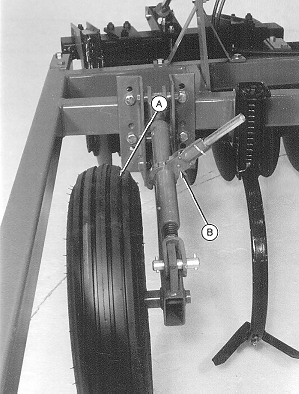

With machine at operating depth and using ratchet (B), adjust stabilizer wheel (A) for LIGHT contact with soil. Always adjust both wheels to same depth.

IMPORTANT: If stabilizer wheels are adjusted with too much down-pressure, damage to stabilizer wheel assembly and/or frame can result.

A-Stabilizer Wheel
B-Ratchet

AG,OUO1011,2692 -19-29MAR00-1/1
