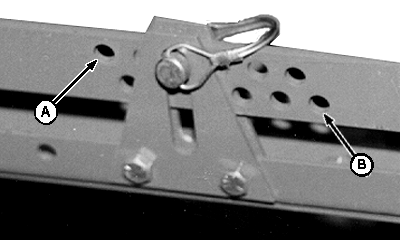

Adjusting Coil Tine Harrow AngleHarrow angle determines how aggressively harrow will operate in field. Most Aggressive (A): When quick-lock pin is installed in front hole, harrow is in most aggressive position. Least Aggressive (B): When quick-lock pin is installed in rear hole, harrow is in least aggressive position.
|
|
