NOTE: Flood tips are recommended for even spray distribution in front of and/or behind disk gangs.

1. Choose nozzle tip for selected spray pattern and delivery rate. Order Nozzle Tip Calculator from your John Deere dealer.

2. Nozzles can be mounted in front of and/or behind disk gangs. Space nozzle clamps according to directions included with bundle.

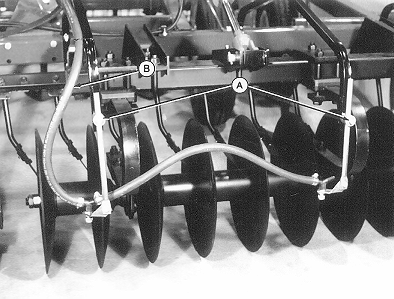

3. Each nozzle is vertically adjustable by loosening screw (A), making adjustment up or down and tightening screw.

4. Route hoses (B); then attach to sprayer. See Product Information Handbook entitled, "Sprayer Nozzle Tips" available from John Deere Des Moines Works, Marketing Department, or your sprayer operator's manual for spray calibration information.

AG,OUO1011,2704 -19-29MAR00-1/1
