Identifying Disk Blades Eligible for Warranty

Loose gang bolts and operating in rock or stump conditions are the most common causes of blade failures. These types of blade failure are NOT warrantable. Check gang bolts periodically, and tighten. (See TIGHTENING GANG BOLTS in this section.)

The Following illustrations show the types of disk blade failures that are eligible for warranty replacement.

AG,OUO1011,2733 -19-29MAR00-1/3

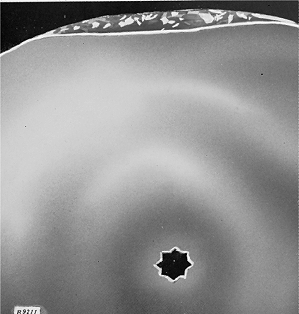

Lamination or split blade caused by defective material.

AG,OUO1011,2733 -19-29MAR00-2/3

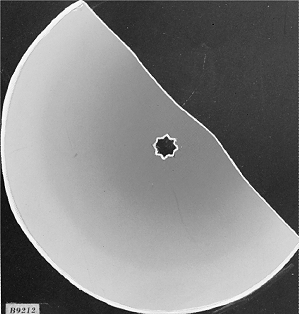

Straight, directional break caused by defective material.

AG,OUO1011,2733 -19-29MAR00-3/3
