Identifying Disk Blades Not Eligible for Warranty

The following illustrations show the types of disk blade failures which are NOT eligible for warranty.

AG,OUO1011,2734 -19-29MAR00-1/6

Irregular, non-directional, tear-type fracture caused by rock or stump conditions.

B9213

Not Eligible

AG,OUO1011,2734 -19-29MAR00-2/6

Irregular, non-directional, tear-type fracture caused by rock or stump conditions.

B9214

Not Eligible

AG,OUO1011,2734 -19-29MAR00-3/6

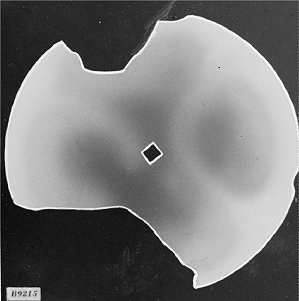

Irregular, non-directional, tear-type fracture caused by rock or stump conditions.

B9215

Not Eligible

AG,OUO1011,2734 -19-29MAR00-4/6

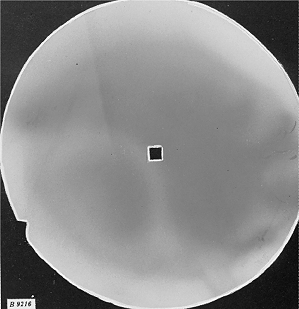

Chipping caused by rock or stump conditions.

B9216

Not Eligible

AG,OUO1011,2734 -19-29MAR00-5/6

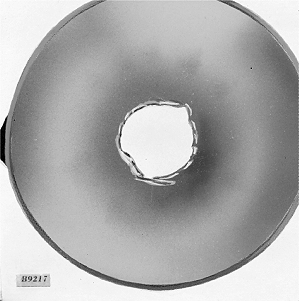

Center broken out, caused by rock or stump conditions, loose gang bolts, or frozen ground.

B9217

Not Eligible

AG,OUO1011,2734 -19-29MAR00-6/6
