Positioning Tractor Drawbar for Transport

1. TWO-WHEEL DRIVE TRACTORS:

Set tractor drawbar (A) in short position.

2. FOUR-WHEEL DRIVE AND TRACKED TRACTORS:

For Field Position: leave one hole clearance on each drawbar side. Pin drawbar tightly for transport.

For Transport Position: move pins in next to drawbar for fixed, center position.

3. WIDE-SWING DRAWBAR:

Place drawbar in fixed, center position for transport.

4. Be sure clevis assembly (if equipped) is installed on top of drawbar. Tighten clevis hardware to specification.

Specification

Clevis Hardware -Torque 407 N·m (300 lb-ft)

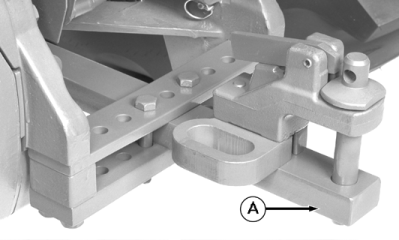

A-Tractor Drawbar

RW55308

John Deere 8000/9000 Series Tractors

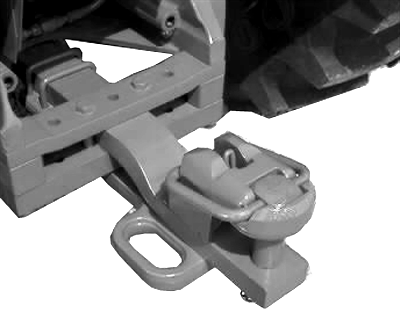

N58122
