Determining Tractor Requirements

1. See RECOMMENDED TRACTORS in Specifications section.

2. If tractor does not have ISO hydraulic couplers, install adapters. See your John Deere dealer.

NOTE: Roman Numerals (I, II, III, IV, V) designate coupler as it corresponds to buttons on SCV located in tractor cab.

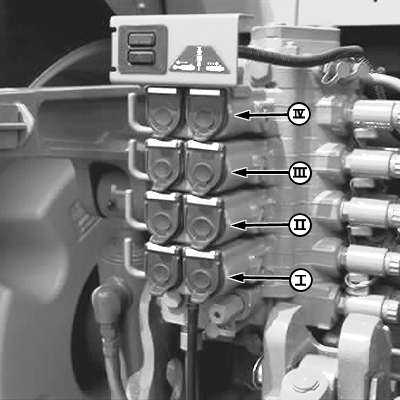

N58115

John Deere 8020/9020 Series Tractors

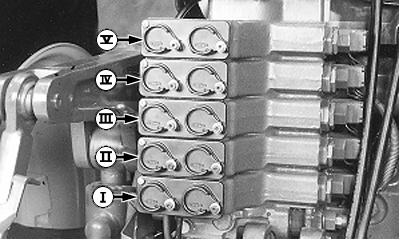

N48100

John Deere 8000/9000 Series Tractors

AG,OUO6056,869 -19-09SEP99-1/1
