Operating TOUCHSET Depth Control (TSDC):

1. Turn single point crank clockwise until depth stop bracket is against rear single point bracket. This ensures that Single Point Depth Control (SPDC) does NOT interfere with TOUCHSET Depth Control (TSDC) operation.

2. To raise machine to upper set point, pull SCV No. I switch (A) back into "DETENT" and release.

3. To lower machine to lower set point, push SCV No. I switch (A) forward into "DETENT" and release.

4. To raise machine to full transport or to rephase depth control hydraulic cylinders, hold SCV No. I switch (A) in rearward "detent" position.

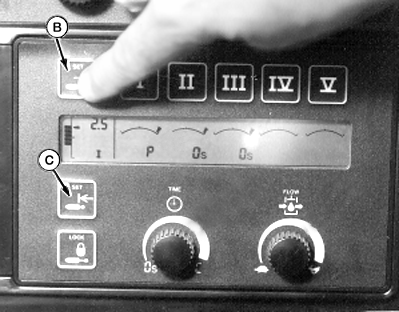

5. To readjust set points, raise or lower machine by holding control midrange between center and detent until machine is at desired position then press upper (B) or lower (C) set button.


A-SCV No. I Control Switch
B-Upper Set Button
C-Lower Set Button

N48107
N42192B

NX,637TDC,MGS9 -19-19APR99-1/1
