Adjusting Steering Column Tilt and Wheel Height

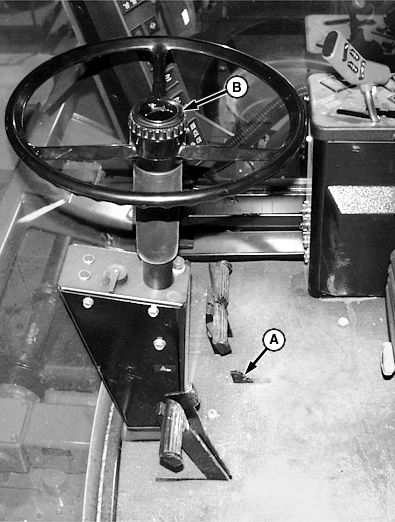

Depress control pedal (A) to adjust steering column to a comfortable angle.

Loosen retaining nut (B) to adjust steering wheel height to a comfortable level. Tighten nut after adjustment.

A-Control Pedal
B-Retaining Nut

AG,OUO1011,1030 -19-07SEP99-1/1
