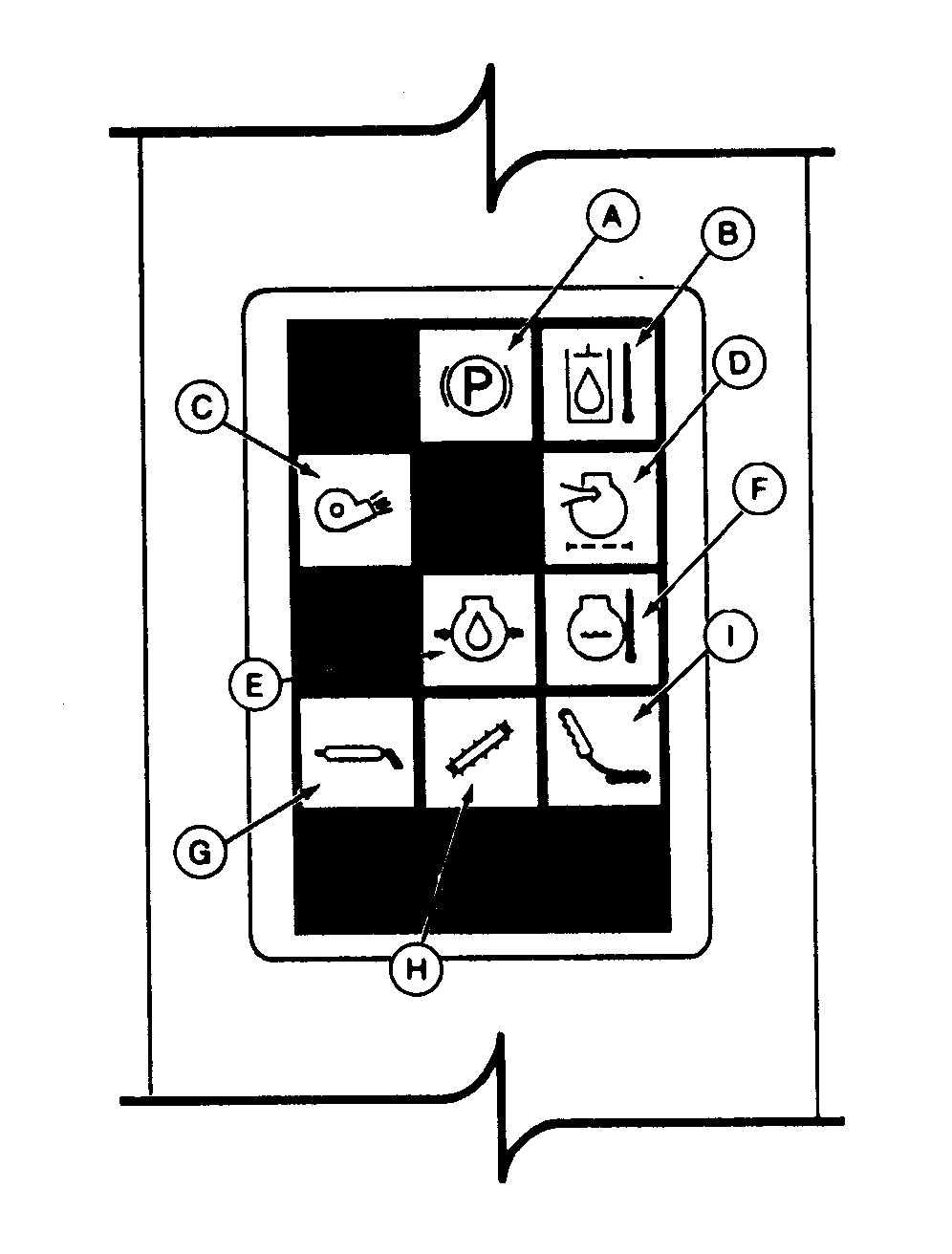

Indicator Display Panel (When Lit)
NOTE:
For details of each indicator light, see individual descriptions in this section.
-
BULB CHECK:
Turn key switch halfway between ON and START positions to light all indicator bulbs. If any indicator lights do not come on, refer to REPLACING INDICATOR, MONITOR AND GAUGE LIGHT BULBS in the CAB AND AIR CONDITIONING section.
A-Park Brake Engaged
B-Hydraulic/Hydrostatic Temperature Too High
C-Fan Speed Too Slow
D-Engine Air Filter Plugged
E-Engine Oil Pressure Low
F-Engine Coolant Temperature Too High
G-Lube Switch Engaged
H-Basket Conveyor Operating
I-Tether in Use
|
|
