Park Brake Indicator

When the park brake is engaged, indicator light (A) and the CAUTION light (B) will come on and steady alarm sounds for three seconds. Pulsed alarm will sound if hydro lever is moved out of neutral with park brake engaged.

Indicator will light when the key switch is in bulb check position, halfway between ON and START positions.

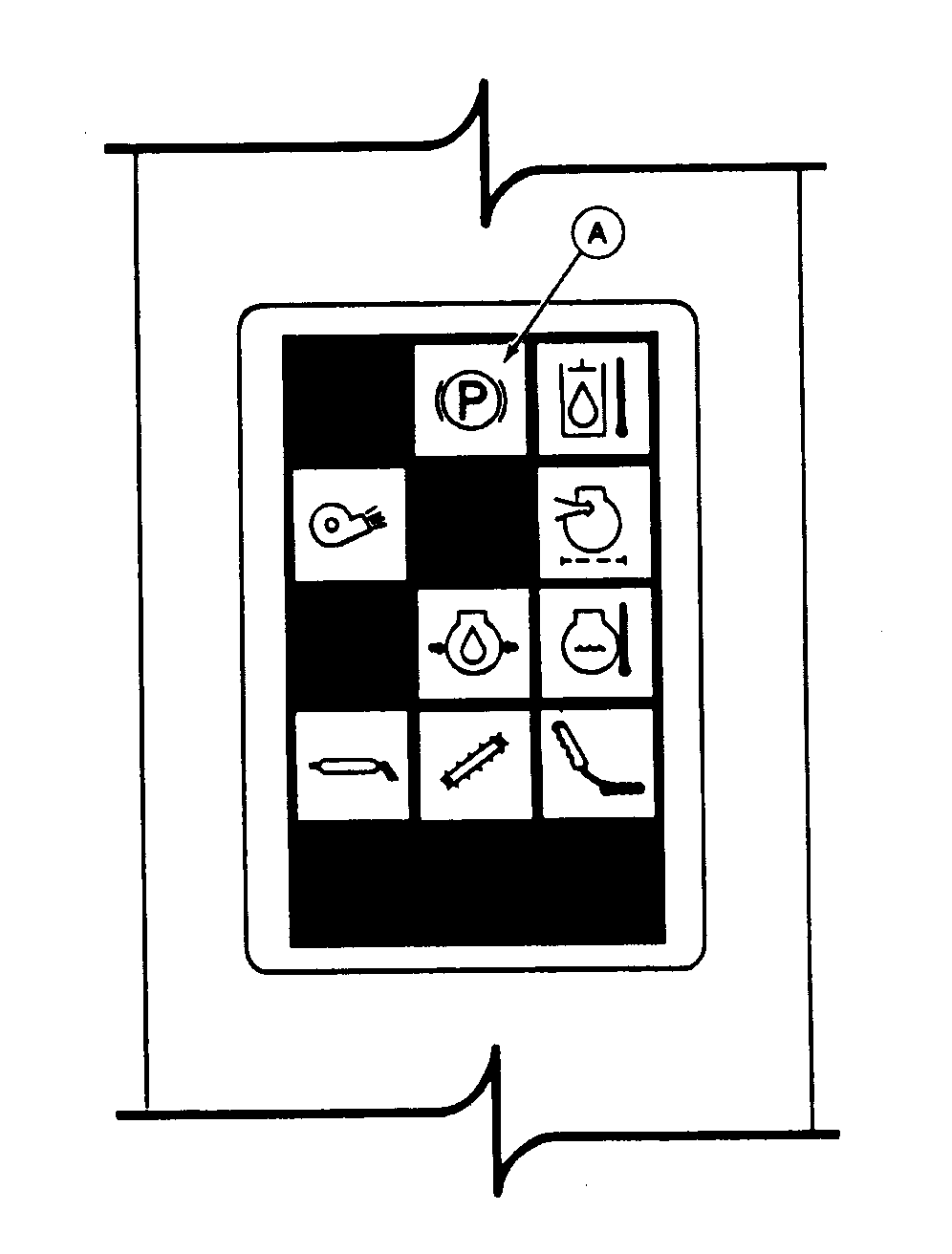

A-Park Brake Indicator
B-Caution Indicator

AG,OUO1011,1037 -19-07SEP99-1/1
