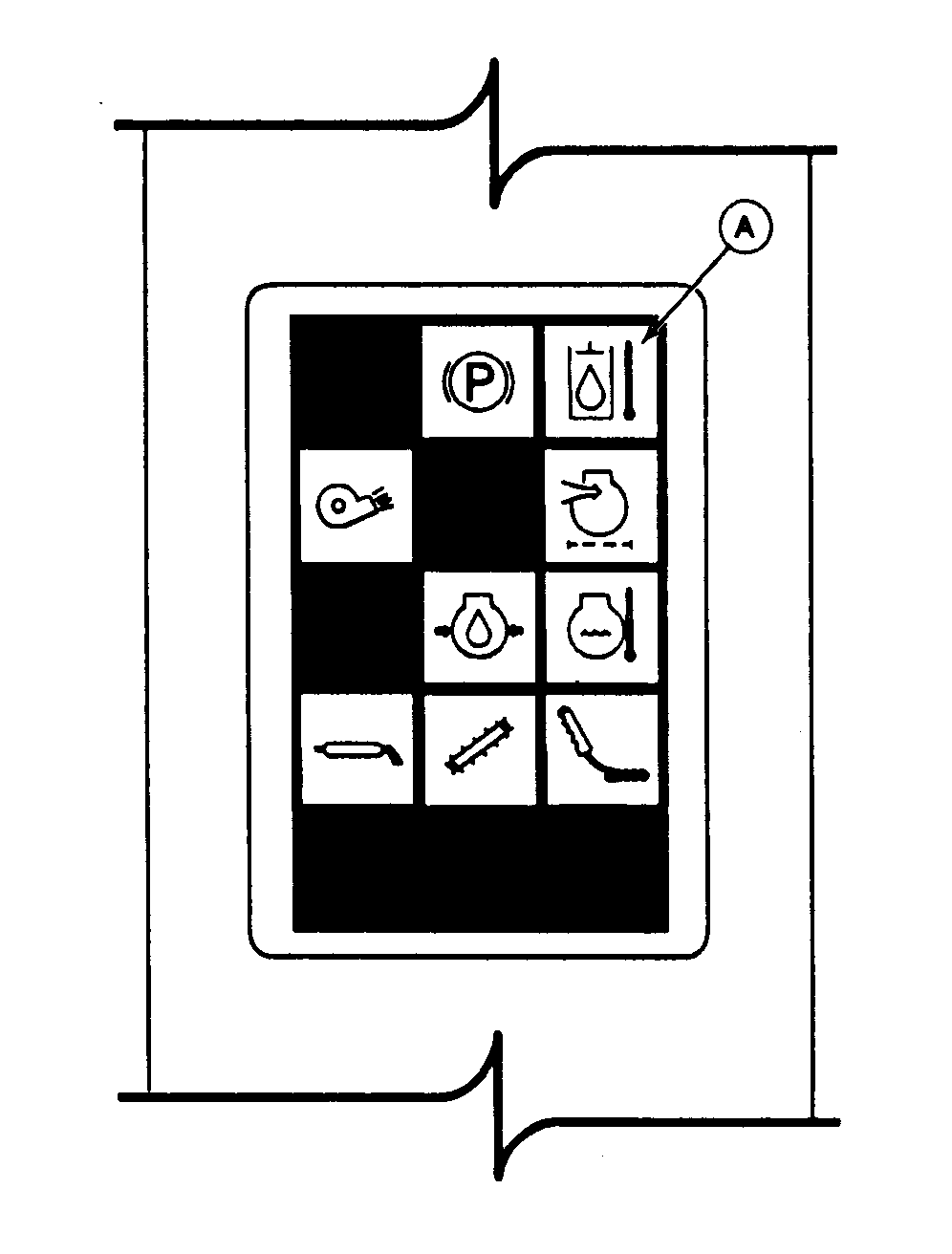

Hydraulic/Hydrostatic Oil Temperature IndicatorHydraulic oil temperature (A) and CAUTION (B) indicators will glow and steady warning alarm will sound for three seconds when hydraulic oil temperature reaches 104.4°C (220°F). Immediately stop machine and reduce load on hydraulic system (disengage compactor auger) to allow oil to cool. Continued operation may cause oil temperature to rise even higher, resulting in machine damage. See TROUBLESHOOTING section. Check oil level. Clean accumulated debris from oil cooler. Indicator will light when the key switch is in the bulb check position, halfway between ON and START positions.
|
|
AG,OUO1011,1038 -19-07SEP99-1/1 |
