Air Filter Indicator

Air filter indicator (A) and CAUTION indicator (B) will glow when air cleaner element is dirty and needs servicing. Steady alarm will sound for three seconds after the indicator first appears. Check and clean air filter. See ENGINE AND DRIVE TRAIN section.

Indicator will light when the key switch is in the bulb check position, halfway between ON and START positions.

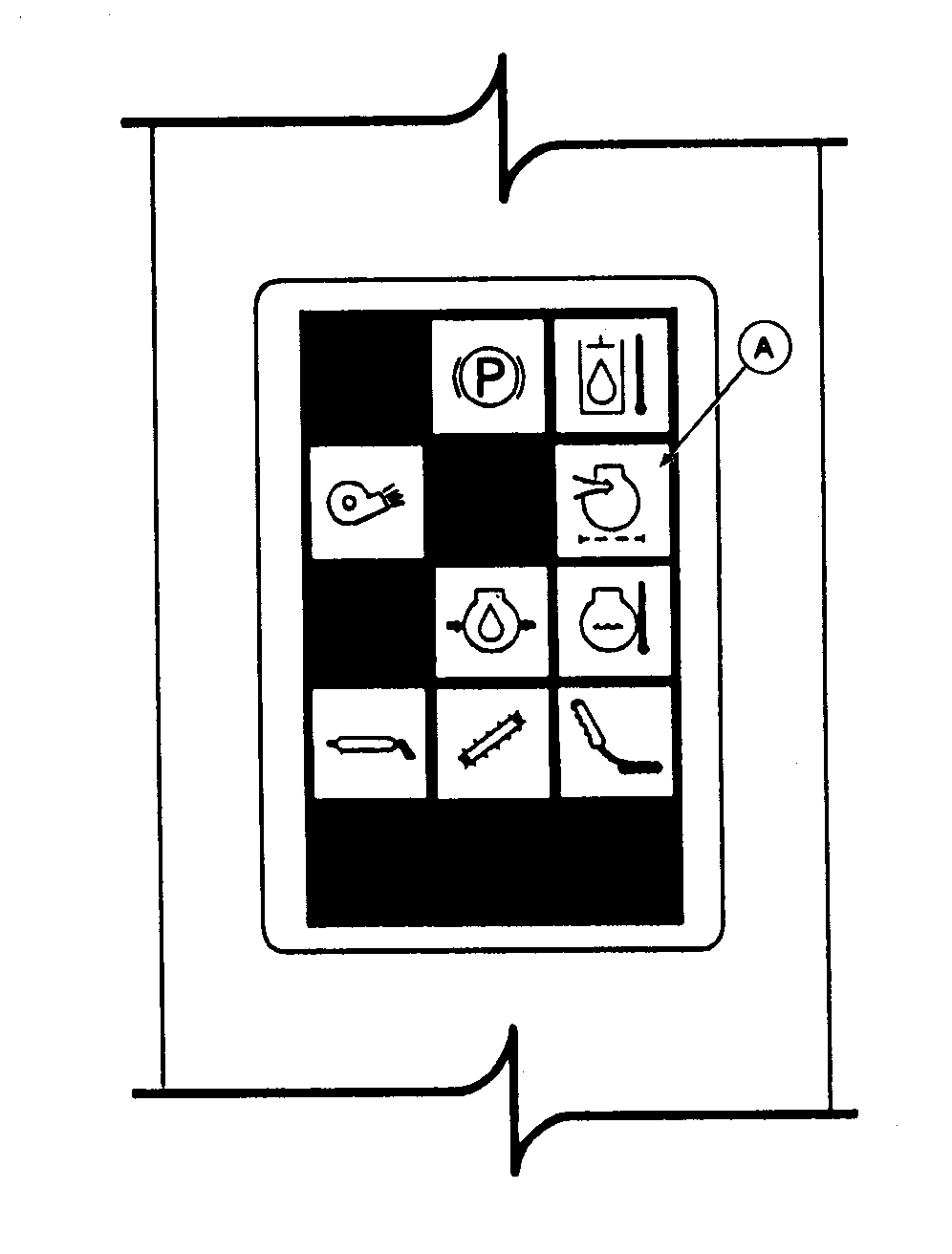

A-Air Filter Indicator

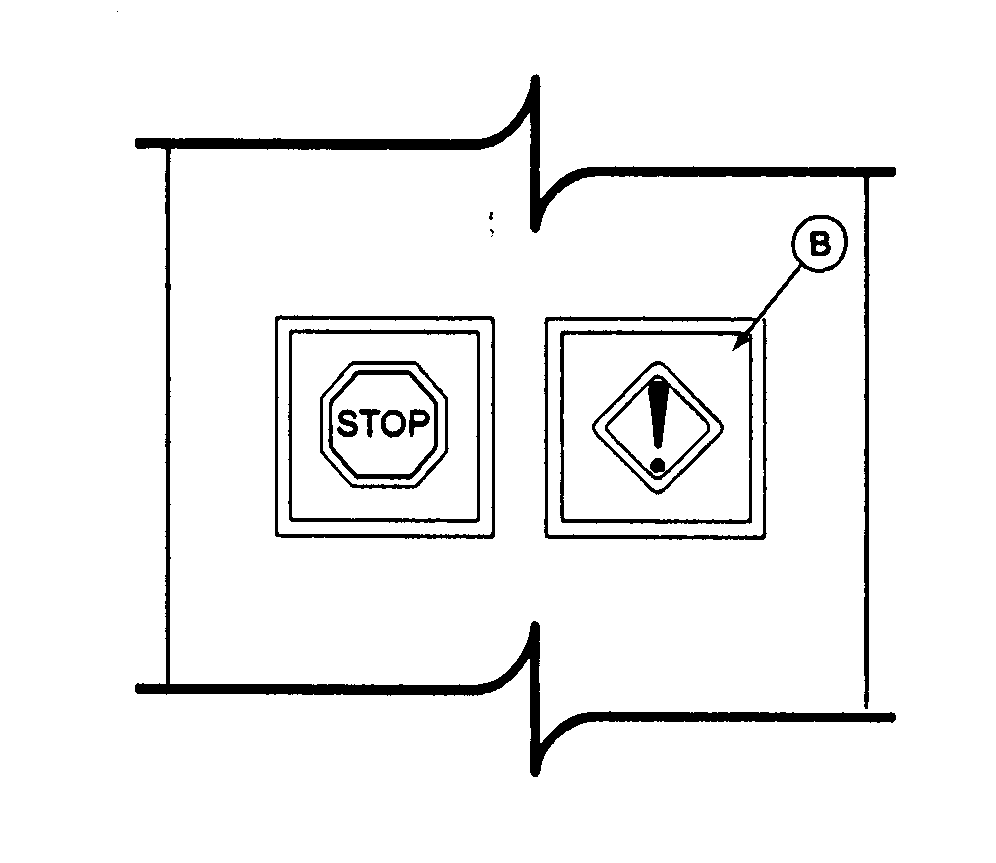

B-Caution Indicator

N42132Q
N42132P

AG,OUO1011,1040 -19-07SEP99-1/1
