Draining Water Separator Filter

1. Visually inspect glass bowl (A) for water or sediment.

2. Open valve (B) to drain accumulated water and sediment. Close valve after draining.

NOTE: Fuel tank should be drained and refilled with fresh fuel if water and sediment are regularly found in separator bowl.

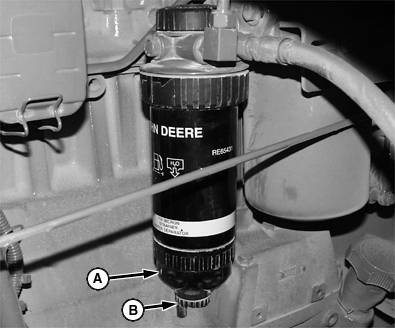

A-Glass Bowl
B-Valve

N51049

AG,OUO1011,1068 -19-07SEP99-1/1
