Stopping the Engine

1. Stop machine, place hydro lever and transmission lever (A) in neutral. Engage the "park" brake.

IMPORTANT: Cooling of turbocharger and certain engine parts is provided by engine oil. Stopping a hot engine abruptly can cause damage to these parts by overheating.

2. Pull throttle (B) back to slow idle position. Allow engine to idle 2 minutes.

3. Lower units.

4. Turn ignition switch (C) off and remove key.

5. Be sure all switches are turned off.

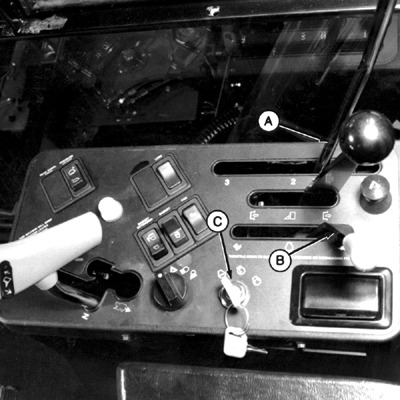

N42167OJ


A-Transmission Lever
B-Throttle
C-Ignition Switch

AG,OUO1011,1077 -19-07SEP99-1/1
