Break-In Service

The engine is ready for normal operation. However, extra care during the first 100 hours of operation will result in more satisfactory long-term engine performance and life. DO NOT exceed 100 hours of operation with break-in oil.

1. This engine is factory-filled with John Deere Engine Break-In Oil. Operate the engine at heavy loads with minimal idling during the break-in period.

2. If the engine has significant operating time at idle, constant speeds, and/or light load usage, or makeup oil is required in the first 100 hour period, a longer break-in period may be required. In these situations, an additional 100 hour break-in period is recommended using a new change of John Deere Engine Break-In Oil and a new John Deere oil filter.

IMPORTANT: DO NOT add makeup oil until the oil level is BELOW the ADD mark on dipstick. John Deere Engine Break-In Oil (TY22041) should be used to make up any oil consumed during the break-in period.

DO NOT use PLUS-50 ® Engine Oil during break-in period of a new engine or engine that has had a major overhaul. PLUS-50 ™ oil WILL NOT allow a new or overhauled engine to properly wear during this break-in period.

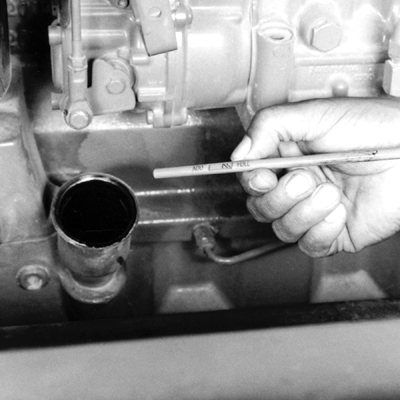

IMPORTANT: DO NOT fill above the crosshatch pattern or the FULL mark, whichever is present. Oil levels anywhere within the crosshatch are considered in the acceptable operating range.

3. Check engine oil level more frequently during engine break-in period. If oil must be added during this period, John Deere Engine Break-In Oil is preferred.

N42189FJ

PLUS-50 is a trademark of Deere & Company

AG,OUO1011,1099 -19-07SEP99-1/2

4. During the first 20 hours of machine operation, avoid prolonged periods of engine idling or sustained maximum load operation. If engine will idle longer than 5 minutes, stop engine.

5. After the first 100 hours maximum, change engine oil and replace engine oil filter (A). See CHANGING ENGINE OIL AND REPLACING OIL FILTER in LUBRICATION AND MAINTENANCE-250 HOUR section. Fill crankcase with seasonal viscosity grade oil. See DIESEL ENGINE OIL in this section.

NOTE: Some increase in oil consumption may be expected when low viscosity oils are used. Check oil levels more frequently.

If air temperature is below -10°C (14°F), use an engine block heater.

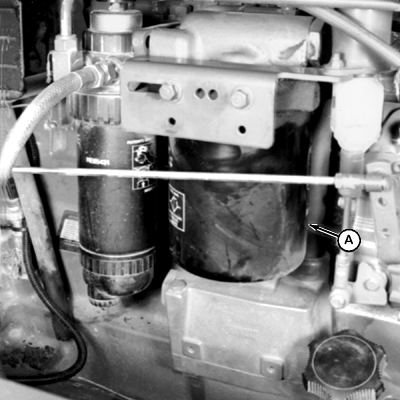

A-Engine Oil Filter

N42189GM

AG,OUO1011,1099 -19-07SEP99-2/2
