Every 50 Hours of Operation
|

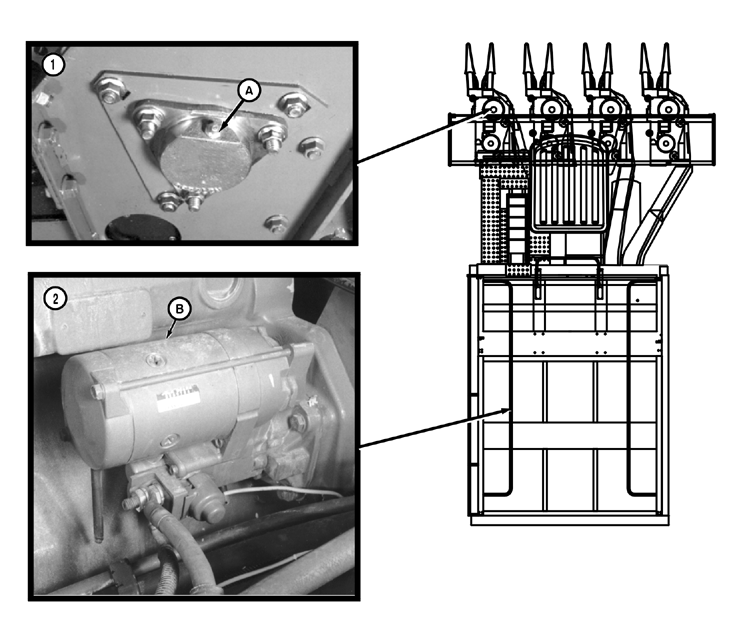

| 1. Lubricate doffer column bearings through grease fitting (A) until grease comes out of lower doffer housing. |
2. Remove lint from starter (B) area. |
AG,OUO1011,1108 -19-07SEP99-1/2 |

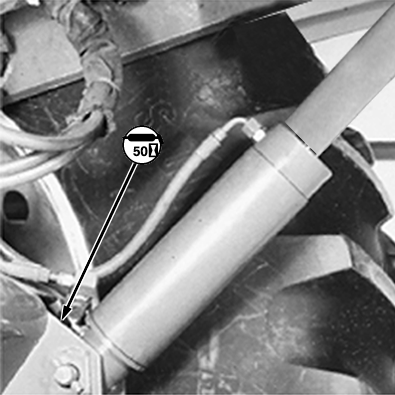

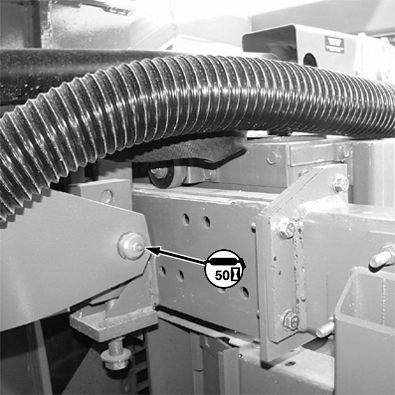

| 3. Lubricate unit lift inner pivot pins and unit lift cylinders. |
|
AG,OUO1011,1108 -19-07SEP99-2/2 |
