Leveling Optional Height Sensing Shoes

causym CAUTION: The unexpected movement of the machine can cause serious injury or death to you or others. Be sure park brake is engaged.

Serious injury or death can result if you or others become entangled or are drawn into moving parts of unit. Keep away from all moving parts to prevent injury or death.

1. With machine positioned on flat surface, raise units to release lockup brackets from cylinders.

2. Raise or lower picking units until height sensing shoes (A) are just contacting the surface.

3. Loosen collar screw (B) on height sensing assembly.

4. Move rod (C) up or down until shoes just contact the surface like original shoes.

5. Tighten collar screw.

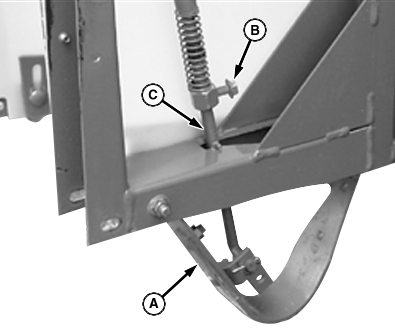

N51083


A-Height Sensing Shoes
B-Collar Screw
C-Rod

AG,OUO1011,1120 -19-08SEP99-1/1
