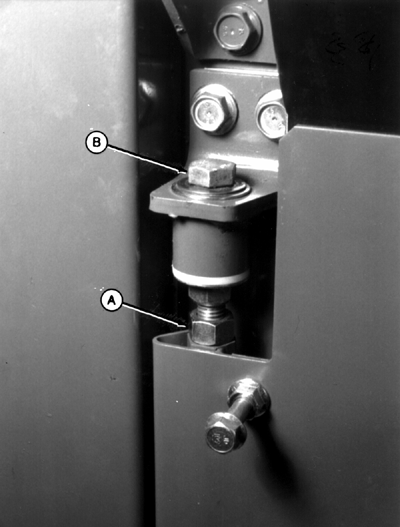

Adjusting Moistener Column Height

1. Loosen lock nut (A).

2. Turn adjusting screw (B) clockwise to raise column; counterclockwise to lower. (Prevent lock nut from turning while adjusting column height.)

3. Tighten lock nut.


A-Lock Nut
B-Adjusting Screw

N42169FG

AG,OUO1011,1126 -19-08SEP99-1/2

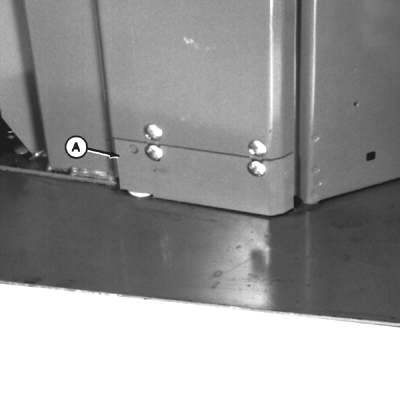

IMPORTANT: After height adjustment, close and lock door; then check for tight fit between stick guard panel (A) and row unit floor. If a gap is found, loosen hardware, push down on stick guard panel to eliminate gap and tighten hardware.

Stick guard panel prevents trash from reaching moistener column and plugging air door.


A-Stick Guard Panel

N42169EQ

AG,OUO1011,1126 -19-08SEP99-2/2
