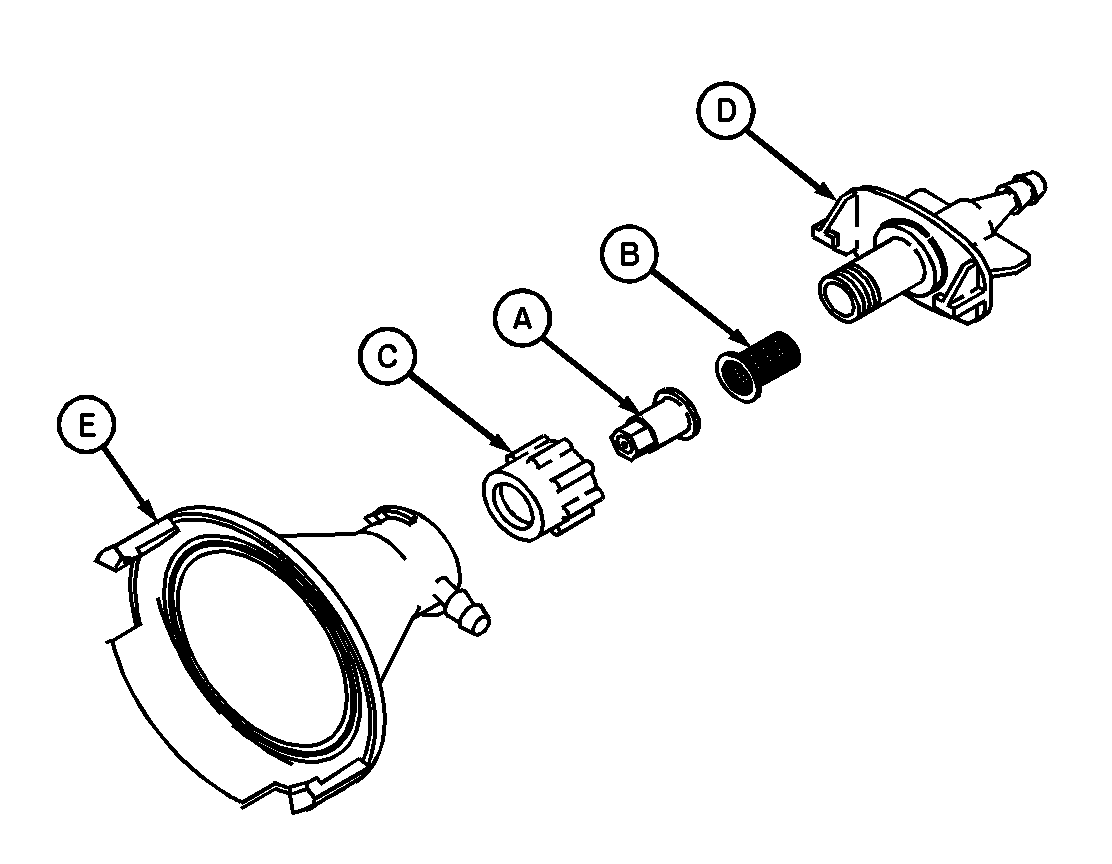

A-Nozzle
B-Filter Screen

C-Nut

D-Nozzle Fitting

E-Housing

Unit Nozzle Strainers-Each nozzle has a strainer that requires a daily check and cleaning if required.

When replacing or reinstalling nozzle tips, do not overtighten nozzles or flow of solution may be restricted.

Machine is shipped with No. 3 nozzles as standard equipment. To increase spray by 100% use a No. 6 nozzle.

2. To access the nozzle (A) and filter screen (B), remove nut (C) from nozzle fitting. If either the nozzle or screen are plugged, clean with water.

3. Reassemble the nozzle assembly in reverse order of the way it was disassembled.

AG,OUO1011,1137 -19-08SEP99-1/1
