Adjusting Lower Plant Guides and Optional Stalklifter Rods

NOTE: The plant guides lift and direct cotton closer to the lower spindles. The plant guides are installed at the factory in maximum lift position. Adjust the plant guides to deliver cotton most efficiently to the lower spindles depending on your field conditions.

1. Loosen cap screws (B) and lower or raise plant guides (A).

2. Tighten cap screws.

3. Stalklifter rods (attachment) can be installed using cap screws (C) and (D) and plates as shown.

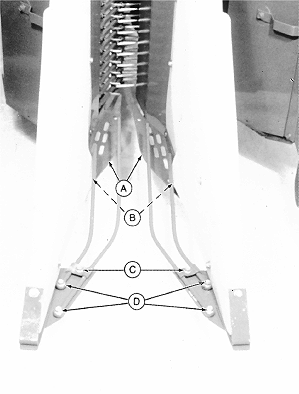

A-Plant Guides
B-Plant Guides Adjusting Bolts
C-Stalklifter Cap Screws
D-Stalklifter Cap Screws
