Adjusting Conveyor Chain Tension

NOTE: To prevent damage to chain bearings when basket is in unload position, chain should JUST touch chain guides.

If chain is out of adjustment, adjust chain tension as follows:

1. Loosen jam nuts (B).

2. Evenly tighten or loosen adjusting nuts (A) on each end of conveyor shaft (C) until proper chain tension is achieved.

3. Tighten jam nuts against channel.

4. Repeat procedure for remaining set of chains on other conveyor shaft.

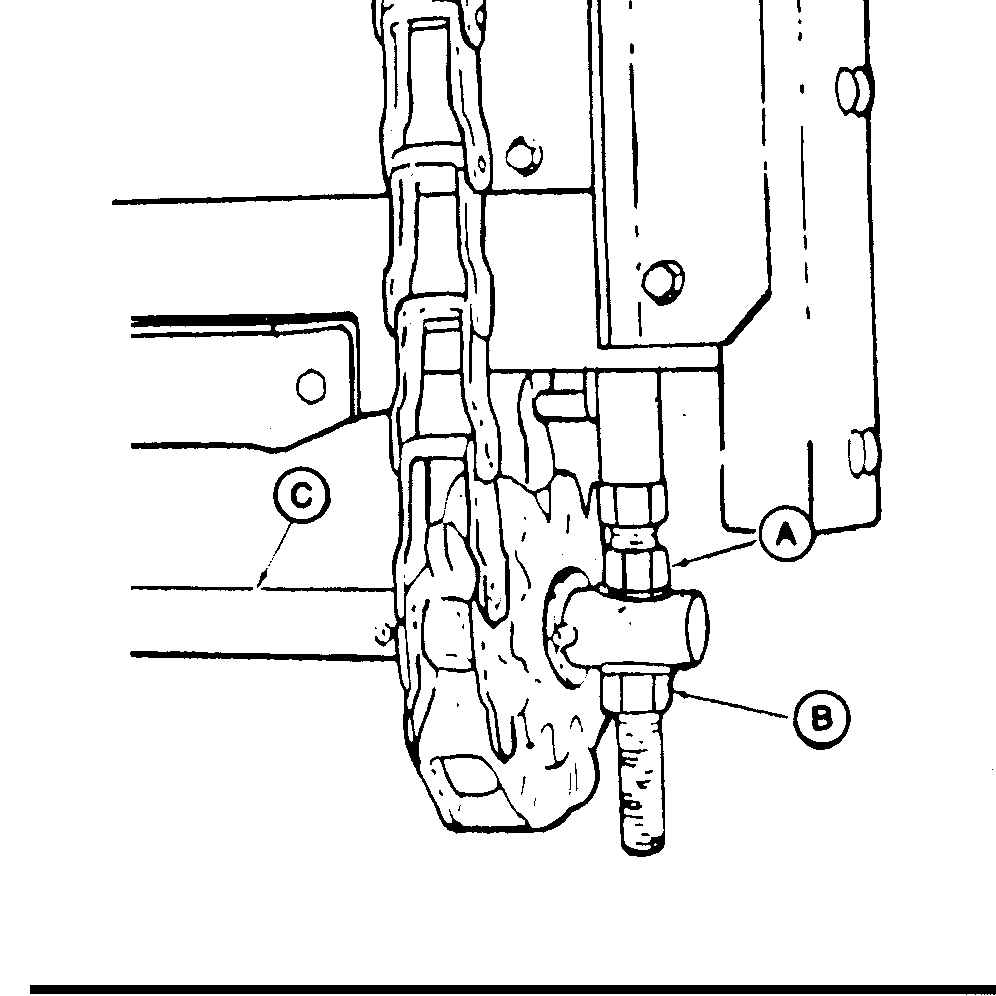

N42138JH


A-Adjusting Nuts
B-Jam Nuts
C-Conveyor Shaft

AG,OUO1011,1167 -19-08SEP99-1/1
