Replacing Primary Filter Element

1. Remove two hold-down screws (if equipped), one on each side of roof. Unscrew thumb screw (A).

2. Lift roof. Remove rod (B) from storage clips. Insert bottom of one-piece support rod into support hole (C) of inner roof. Install spring pin (D).

3. Unlatch clips (E) on both sides. Remove filter element (F).

4. Install filter element using reverse procedure.

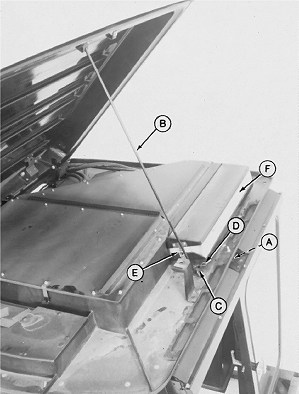

A-Thumb Screw
B-Rod
C-Support Hole
D-Spring Pin
E-Filter Clips
F-Filter Element

N85046G1

AG,OUO1011,1193 -19-09SEP99-1/1
