Jacking Up Front Axle

causym CAUTION: Machine is heavy and can fall or roll causing serious injury or death to you or others. Use a jack with a minimum jacking capability of 13 t (15 tons). Machine must be on a flat, level surface with transmission lever in neutral, parking brake engaged and key removed.

IMPORTANT: Machine damage can occur. Jack up front axle only at designated jacking locations.

1. Position machine on a flat, level surface.

2. Position jack on a solid, flat surface beneath jacking plate (A).

causym CAUTION: Machine is heavy and can fall or roll causing serious injury or death to you or others. Clear all bystanders away from machine before jacking up machine.

3. Clear all bystanders away from machine, then using jack, raise front axle only enough to change/repair tire.

4. Change/repair tire. Tighten drive tire wheel bolts to specification.

Specification

Drive Tire Wheel Bolts -Torque 610 N·m (450 lb-ft)
Tighten guide wheel bolts to specifications.

Specification

Non-Powered Guide Wheel Bolts -Torque 312 N·m (230 lb-ft)
Tighten power rear axle wheel bolts to specifications.

Specification

Power Rear Axle Wheel Bolts -Torque 407 N·m (300 lb-ft)

5. Lower machine to ground.

TS229
N42189SB

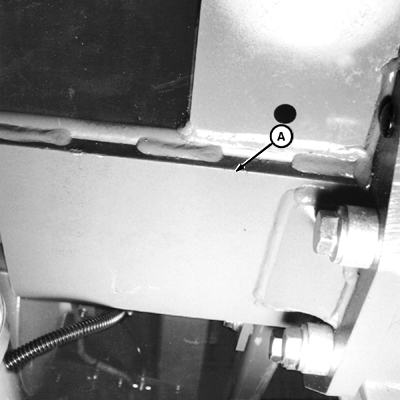

A-Jacking Plate

AG,OUO1011,1215 -19-09SEP99-1/1
